Yktd 8509cnl Jt4 1120hl 1 Port Through Hole 10g Base T Rj45 Ethernet Connectors - China

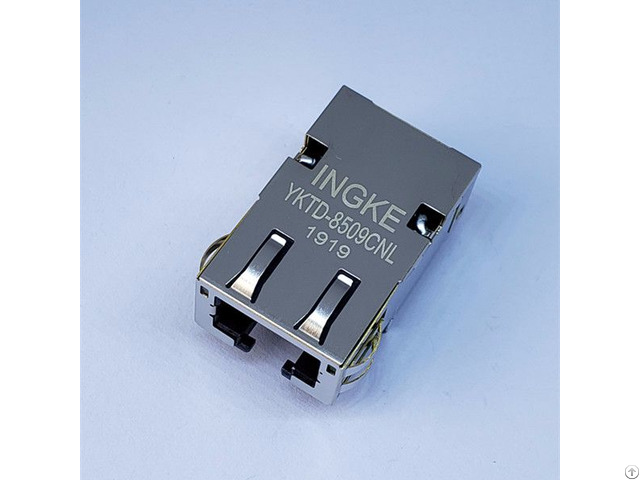

Ingke YKTD-8509CNL Compatible JT4-1120HL 1 Port Through Hole 10G Base-T RJ45 Ethernet Connectors Part Number: YKTD-8509CNL

Made in China: JT4-1120HL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10G Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90° Angle (Right)

Termination: Solder

LED Color: Green - Yellow, Green

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Guide, Filter

Tab Direction: Down

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 50µin (1.27µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;JXD1-1001NL JXD1-0009NL JXD0-0019NL JXD1-0015NL JTL-U1002NL JT4-1128HL JXK0-2500NL J0B-2014NL J0B-2015NL JK0-8001NL JD2-0010NL JXD0-4005NL JT7-1104NL JT7-1115NL JT8-4000HL E6588-52L184-L JXD1-0008NL
