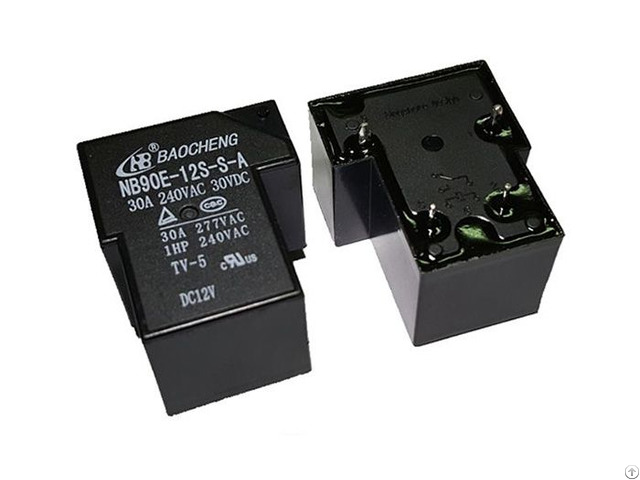

Nb90e Relay - China

Baocheng export excellent power relay, telecom relays and automotive relays.

30A switching capability

Compact structure

Dielectric strength between coil and contact 2.5KV, max.

4KV

NO, NC, NO&NC contact form available

Option for sealed and open type

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 32 x 27.2 x 20mm

Telecom Relays, Telecom Relays 19F, Telecom Relays Exporter, China Contact Ratings

Contact Form: 1A, 1B, 1C

Contact Material: AgCdO, AgSnO2

Contact Load Capacity: 1A: 30A/240VAC, 30VDC 1B: 20A/240VAC, 30VDC 1C: 30A/240VAC, 30VDC

Max.

Switching Current: 30A

Max.

Switching Power: 7200VA/900W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 2500VAC

Operate Time (Max.

): 15ms

Release Time (Max.

): 10ms

Ambient Temperature: -40℃ ~ 85℃/105℃

Terminal Type: THT Coil Ratings

Nominal Voltage (5-110)VDC

Nominal Coil Power 0.9W
