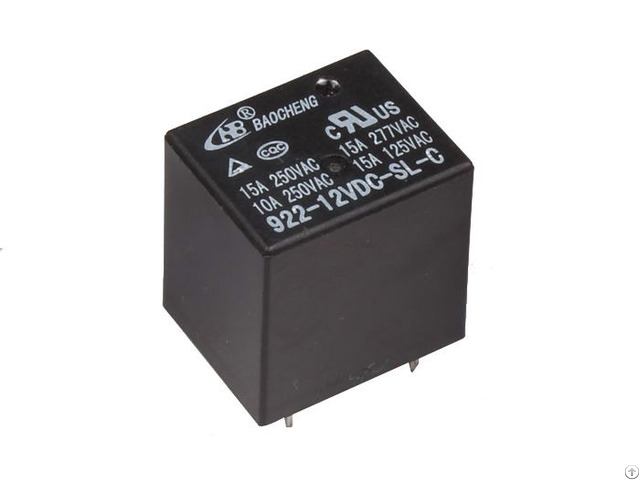

Type 922 Relay - China

Baocheng export excellent power relay, telecom relays and automotive relays.

Normal 15A switching capability

Standard PCB layout

Dielectric strength between coil and contact 1.5KV

NO, NC, NO&NC contact form available

Option for sealed and flux-tight type

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 20.3 x 16.5 x 20.5mm

Baocheng supply electromagnetic relays, power relays, telecom relays and automotive relays.

We wish to hand in hand with global customers to pursuit excellent quality and cast perfect products to share happiness life bring by technology.

Contact Ratings

Contact Form: 1A, 1B, 1C

Contact Material: AgCdO, AgSnO2

Contact Load Capacity: 1A: 10A/250VAC;12A/125VAC; 15A/250VAC, 277VAC 1B: 10A/250VAC 1C: 10A/250VAC;12A/125VAC; 15A/250VAC, 277VAC

Max.

Switching Current: 20A

Max.

Switching Power: 4155VA/420W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 100MΩ

Dielectric Strength(Between coil&contact): 1500VAC

Operate Time (Max.

): 10ms

Release Time (Max.

): 5ms

Ambient Temperature: -40℃ ~ 85℃/105℃

Terminal Type: THT Coil Ratings

Nominal Voltage (5-48)VDC

Nominal Coil Power 0.36W
