Custom Size 11.6 Inch Circular Shape Touch Screen With ILITEK Controller

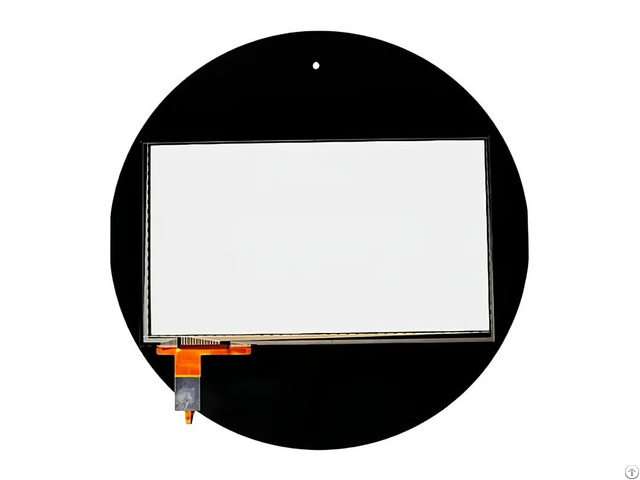

11.6 Inch Circular Capacitive Touch Screen with ILITEK Controller

Semijei-Tech's 11.6 inch circular touch screen is a custom projected capacitive touch panel designed for equipment that requires a distinctive round front interface rather than conventional rectangular glass.

The circular capacitive touch screen combines a 450 mm circular cover lens, G+G construction, 10-point multi-touch and an ILITEK touch controller.

It is suitable for custom HMI systems, interactive terminals, smart equipment and commercial products where both touch functionality and industrial design are important.

11.6 InchPCAP Touch Area

450 mmCircular Cover Lens

10-PointMulti-Touch


ILITEKTouch Controller

Why Choose This Circular Capacitive Touch Screen?

Circular Cover Glass Design

The main difference between this product and a conventional PCAP panel is its round front form.

The 11.6 inch circular touch screen uses a 450 mm circular cover lens to create a distinctive interface that can become part of the equipment's exterior design.

Round cover glass appearance

Suitable for non-standard product enclosures

Custom printing and color options

Custom sensor and FPC integration available

10-Point PCAP Multi-Touch

The round capacitive touch screen supports up to 10 simultaneous touch points, making it suitable for graphical HMI interfaces and gesture-based control.

Up to 10 touch points

Swipe, zoom and gesture interaction

Fast touch response

Suitable for interactive commercial and industrial interfaces

ILITEK Controller Integration

The current configuration uses an ILITEK touch controller with COB connection.

USB, RS232 and I2C interface options make integration possible with a range of embedded computers and control systems.

Touch parameters can also be tuned according to the cover glass, operating system and application environment.

Durable G+G Structure

The glass-to-glass PCAP structure combines a 3 mm cover glass with a 0.7 mm touch sensor for a durable front interface.

≥6H surface hardness

≥85% transmittance

-20°C to +60°C operating temperature

AG / AR / AF and other treatments available
