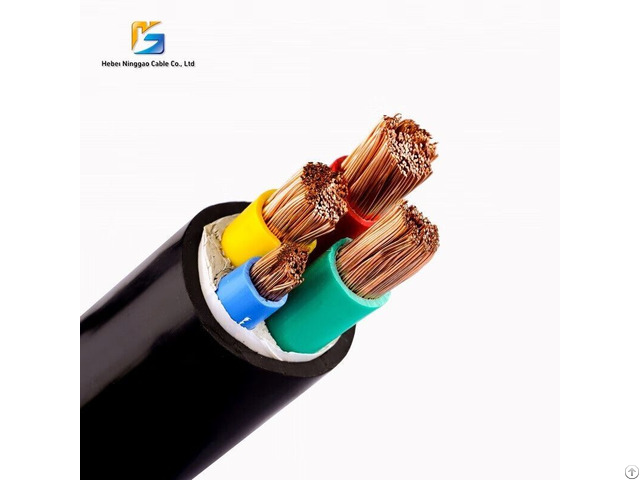

0.6/1kV Flexible PVC Insulated Power Cable (VVR)

This is a flexible low-voltage power cable, applicable for fixed/lightly movable installations in indoor, cable trench or equipment wiring scenarios.

It features high flexibility (easy for bending & routing), good insulation performance and cost-effectiveness, suitable for general power transmission.

The Flexible PVC Insulated Power Cable is designed for efficient and safe low-voltage power distribution in fixed installation and flexible wiring applications.

Featuring fine-stranded copper conductors and high-quality PVC insulation, this Low Voltage Power Cable offers excellent flexibility, easy installation, and reliable electrical performance.

It is widely used in construction projects, industrial wiring systems, and distribution panels.

Operating Temperature: Normal operation (max.

70°C); Short-circuit (max.

160°C, duration 5 seconds).

Voltage: AC 0.6/1kV.

Test Standard: Withstand AC3.0kV voltage test for 5 minutes (no breakdown).

Bending Radius: (Flexible structure) All cross-sections: 24x OD (short-term bending) / 26x OD (long-term use).

Materials: Multi-strand fine-twisted flexible copper conductor + PVC insulation + PVC sheath (insulation & protection).

Key Electrical & Mechanical Advantages:

- High Flexibility for Easy Installation: Fine-stranded copper conductors allow for effortless bending and routing, making it ideal for complex wiring environments and tight spaces.

- Stable Electrical Performance: High-grade PVC insulation ensures reliable dielectric strength and consistent power transmission in low-voltage systems.

- Enhanced Safety Features: Optional FR-PVC (Flame Retardant) and LSZH (Low Smoke Zero Halogen) types significantly improve safety in indoor and building applications.

- Cost-Effective Solution: Provides a more economical alternative for standard electrical installations compared to XLPE-insulated cables.
