Gps Internal Antenna - Taiwan

price: contact company for price

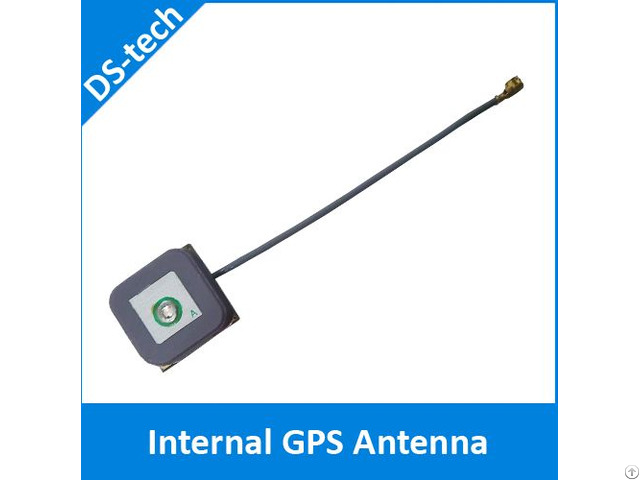

Gps Internal Antenna

Products Photos Catalog Gps Internal Antenna Photos Catalog

This antenna system consists of two functional blocks, the LNA portion and the patch antenna.

* Operation Temperature : 　- 20℃ to + 65℃

* Storage Temperature : 　- 30℃ to + 75℃

* Relative Humidity : 　40% to 95%

* Input Voltage

　Min : 2.7V Typ: 3.0V Max : 3.3V

* Current Consumption

　At 3.0V Min : 2mA Typ: 4.2mA Max : 5mA

* RF Cable :

　RF Coaxial Cable, ψ1.13 ± 0.1mm, L =60+/- 2 mm

* RF Connector :

　I- PEX ( F )

* RFrequency Range :

　1575.42 ± 1.023 MHz

* Gain :

　At 90° 14.5 ± 4dBi

* Output Impedance :

　50Ω

* Dimension : 15 x 15 x 6.7 mm


Company Contact:


  • Phone: 886222281577

  • Address: No.178-1, Xinzhuang Rd., Xinzhuang district,, New Taipei City, Taiwan

  • Email: Email


Published date: November 12, 2018

  • Business Description: Ding Sheng is one of the manufacturer and agent in Taiwan for GPS, GSM, 3G, 4G LTE NB-IoT and Bluetooth products .

    We can provide different kind of solution to suit for customer's request.

    Main Products:

    GPS module, GPS Engine Board, GSM Module, GPS / GSM Antenna, GPS Mouse , GPS Devices, GPS Systems, GPS Receiver, Bluetooth Module, car tracking, AVL, Security system, GPS antenna, GSM antenna, OEM/ODM, 4G LTE module, 4G LTE antenna, 3G module, 3G Antenna, RF Connector, RF cable, SIM card holder, NB-IoT
