100 Percent Pure Copper Coil Transformer 0 5kva 45kva Voltage Stabilizer - China

price: 14.61 Dollar US$

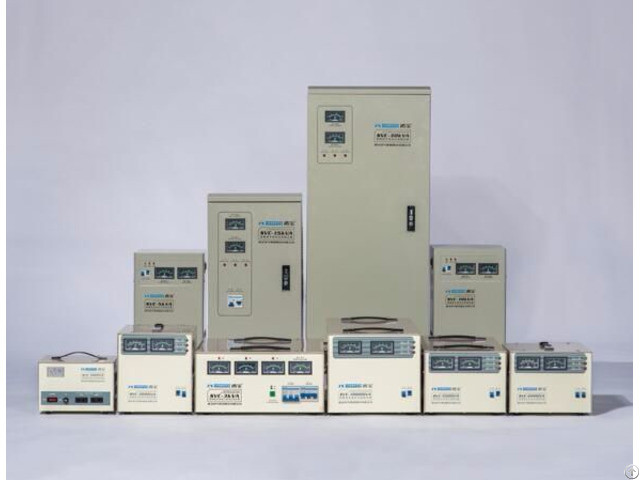

100 Percent Pure Copper Coil Transformer 0 5kva 45kva Voltage Stabilizer

Products Photos Catalog 100 Percent Pure Photos Catalog

"1.100% real power

2 - Pure copper servo controlled, also do relay type

3.100% copper cable

4 - Accept silkprint for small order

5 - Produced environmentally friendly materials and certified materials

"

"FEATURES

Power Rating: 500VA-10KVA / 5KVA-45KVA

Power Factor: 0.8

Reset Switch: Manual Reset Switch

Bypass Switch: Manual Bypass Switch For 3 KVA - 60 KVA, OPTIONAL

Indicator: Input/Output Voltage (OPTION: VOLTMETER, NIXIE TUBE, LED, LCD)

Operating Temperature: 0 ~ 40 C

Relative Humidity: 0 - 90% MAIN TECHNICAL INDEX : SERVO SYSTEM

Voltage Regulatotion System: Servo Motor System

Input Regulation System: 220V+15%/-25%(160-250V), 1 Phase (100V, 110V Option)

Output Voltage Regulation: 220V+/-3%, 1 Phase (100V, 110V Option)

Frequency: 50 Hz +/-5%

Efficiency: Better than 95% at full load, 198-220V input voltage

Electric Appliance: 1500v/min no flashing nor puncture

Insulation Resistance: more than 2M Ohm

Output Wave Form: Sine wave (Synchronize with input wave form)

Output Wave Form Distortion: No additional distortion

Harmonic Distortion: Less Than 0.5%

Response Time: Less than 1 second (the input votlage changed 10%) PROTECTION SYSTEM (OPTIONAL)

Surge Protection: Automatic shutdown

Overlaod Protection: Circuit breaker or Fuse

Time Delay: - Short time delay: 5 seconds +/- 2 seconds

- Long time delay: 5 minutes +/- 2 minutes

Automatic Shutdown: - Output voltage out of limits: 245+/-5V, Manual Reset

- Output voltage out of limits: 185+/-5V, Automatic Reset

- AC voltage flicker

- Output Short Circuit

- Phase fault

- Power failure or Interruption

- Power semiconductor failure OTHER

Acoustic Noise: Less than 40dB

Warranty period: One year (for free) from the date of B/L.

Free product accessories will be sent to you and save your maintain cost

Application: Office equipment, test equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc CONTACT

​nemo.

zheng at yahoo.

com"


Company Contact:


  • Phone: 0086 577 62775843

  • Address: Xiangyang Industrial Zone, Liushi Town, Yueqing City, Wenzhou City, Zhejiang , China

  • Email: Email


Published date: February 6, 2017

  • Business Description: 100% pure copper coil transformer 0.5kva-45kva voltage stabilizer

    "1.100% real power

    2 - Pure copper servo controlled, also do relay type

    3.100% copper cable

    4 - Accept silkprint for small order

    5 - Produced environmentally friendly materials and certified materials

    "
