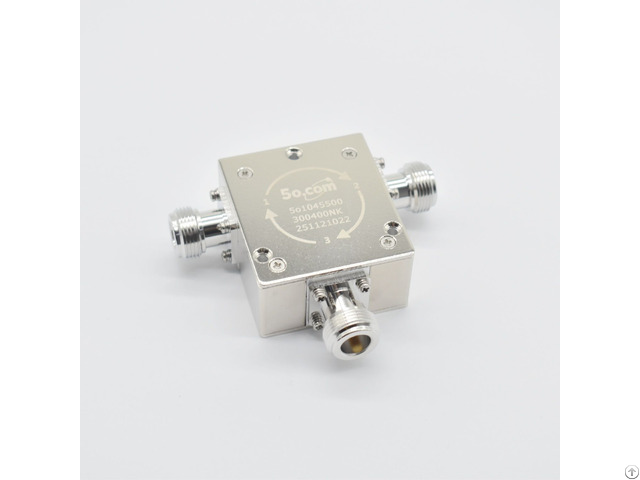

100w Coaxial Circulator Low Loss 300 To 400mhz N Connector - China
price: 55.00 Dollar US$
Product Features:
Model Number: 5o1045500300400NK
Frequency Range: 300 to 400MHz
Isolation Min: 18dB
VSWR Max: 1.3
Insertion Loss Max: 0.6dB
Connector Type: N-K
Forward Power: 100W
Reverse Power: 100W
Impedance: 50 ohm
Operating Temperature: -30 to +70℃
Storage Temperature: -40 to +125℃
Dimensions: 45 mm x 50 mm x 24 mm Applications:
RF power amplifier protection in VHF UHF communication systems
Digital mobile and base station equipment
Medical communication and security devices
Military and commercial communication applications
Public safety and land mobile radio systems Recommended Matching Products:
RF power amplifiers
Transceiver modules
Base station equipment
Test and measurement instruments
Military communication systems
Company Contact:
- Posted By: 5o.com
- Phone: 13902992810
- Address: Software Industry Base, Shenzhen , Guangdong , China
- Email:
- Website: https://www.5o.com/
Published date: December 14, 2025
- Business Description: 5o.
com is a modern high-tech enterprise specializing in passive RF and microwave components, integrating R&D, production, and sales.
The company focuses on technological innovation as its core and relies on technology leadership.
The company's main products: Microwave RF isolators, circulators, coaxial terminations, coaxial attenuators, power splitters/dividers, waveguide to coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers and other microwave passive components.
Focusing on cutting-edge fields such as 5G communication, satellite navigation, radar electronic countermeasures, and aerospace, we provide customers with high-performance microwave passive device integrated solutions.
