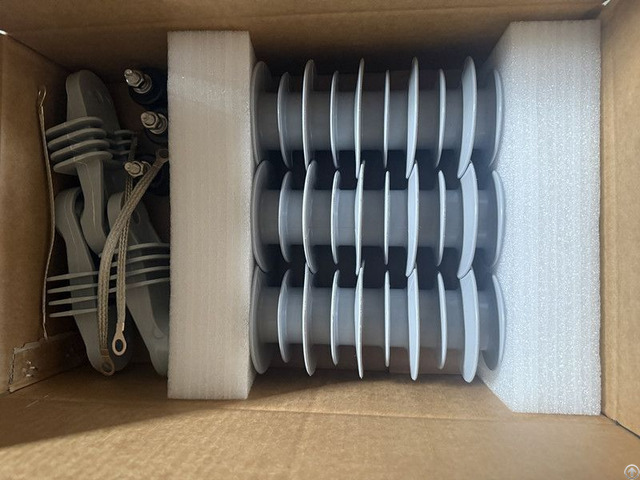

11kv Polymer Housed Surge Arrester - China

The 11kV Polymer Housed Surge Arrester is designed to protect medium-voltage distribution systems and electrical equipment against transient overvoltages caused by lightning and switching events.

Using gapless zinc oxide metal oxide varistor (MOV) elements and a polymer outer housing, the arrester provides fast overvoltage limitation while maintaining very low leakage current under normal operating conditions.

ZheXi offers 11kV polymer surge arresters for overhead distribution lines, pole-mounted transformers, substations and other medium-voltage applications, with 5kA and 10kA configurations available according to project requirements.

Available Models: YH5W-11 / YH10W-11

Rated Voltage: 11kV

MCOV: 9.4kV

Application: Distribution Line / Transformer / Substation

OEM & Project Specification Support Available 11kV Surge Arrester Applications The 11kV surge arrester is commonly specified for medium-voltage power distribution systems where lightning impulses and switching overvoltages may damage insulation or connected electrical equipment.

Typical applications include:

11kV overhead distribution lines

Pole-mounted transformers

Distribution substations

Medium-voltage switchgear

Cable terminations

Distribution feeders

Utility power networks

Industrial 11kV electrical systems

For outdoor distribution applications, surge arresters are normally installed close to the equipment being protected to help limit transient overvoltage stress.

Polymer Housing and Zinc Oxide MOV Design

The 11kV arrester uses nonlinear zinc oxide metal-oxide resistor elements as its main protective component.

During normal system operation, the MOV elements remain highly resistive.

When a transient overvoltage occurs, their resistance decreases rapidly, allowing surge current to discharge while limiting the voltage across the protected equipment.

The polymer housing provides an outdoor insulation structure suitable for distribution-line applications and offers a lightweight alternative to conventional porcelain-housed designs.

Key design characteristics include:

Gapless metal oxide construction

Zinc oxide MOV elements

Polymer outer housing

Lightweight construction

Outdoor weather resistance

Pollution-resistant surface design

Low residual voltage

Fast response to transient overvoltage

Suitable for overhead distribution environments
