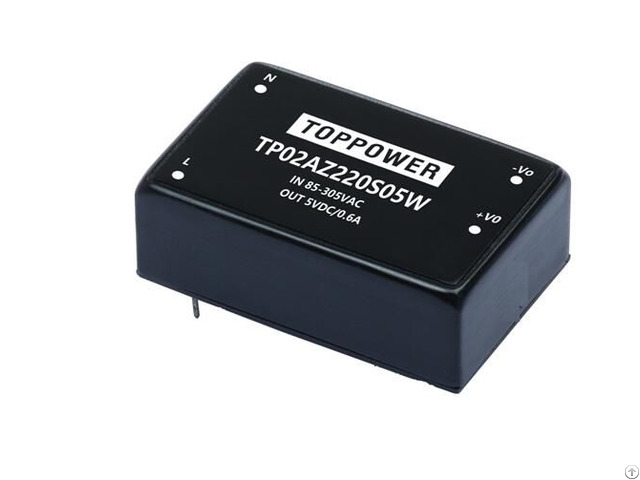

1W, 2W 3KVAC Isolation Wide Input AC/DC Converters

The rated output power of TP01(02)AZ series is 1W, 2W with wide input voltage range, for both AC input and DC input application.

High reliability, Low power consumption, low leakage current 0.1mA, High isolation.

Product safe and reliable, Good EMC performance, EMC And meet the safety specifications of IEC/EN61000-4, CISPR22/EN55022, UL62368/EN662368/IEC62368 .

Widely used in industrial control and electrical instrumentation, smart home, which do not have high requirement on EMC.

The EMC external circuit must be added if the products need to be applied to EMC harsh environment.

Part Number Input Voltage Output VAC VDC Voltage(VDC) Current(mA)

TP01AZ220S03W 85-305 80-400 3.3 300

TP01AZ220S05W 85-305 80-400 5 200

TP01AZ220S09W 85-305 80-400 9 111

TP01AZ220S12W 85-305 80-400 12 83

TP01AZ220S15W 85-305 80-400 15 67

TP01AZ220S24W 85-305 80-400 24 42

TP02AZ220S03W 85-305 80-400 3.3 600

TP02AZ220S05W 85-305 80-400 5 400

TP02AZ220S09W 85-305 80-400 9 222

TP02AZ220S12W 85-305 80-400 12 167

TP02AZ220S15W 85-305 80-400 15 133

TP02AZ220S24W 85-305 80-400 24 83
