433mhz 200w Solid State Wm Generator Used For Microwave Medical Ablation - China

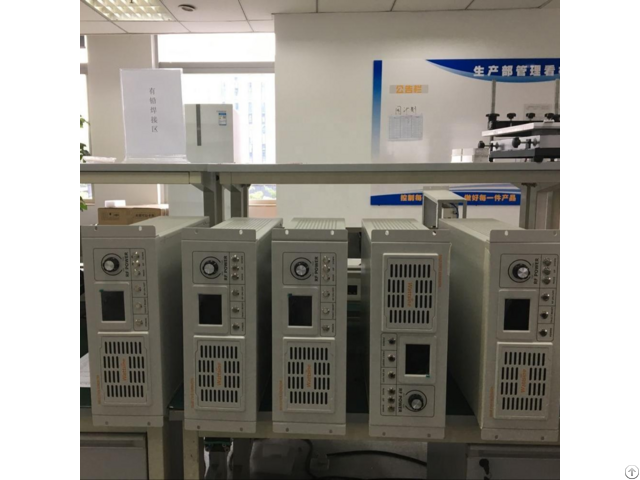

WSPS-433-200-CMFA solid-state microwave power generator is a solid-state microwave energy device specialized in ISM field.

Adopt all solid-state microwave power devices, output power is 200W, and achieve arbitrary power adjustment; PLL phase-locked loop technology, has high frequency stability, built-in circulator and load, suitable for loads with different stationary wave ratios; has a complete protection circuit, Bearing detection and control module status.

Operation Mode Continuous wave Pulse wave Continuous wave and Pulse Control Mode Remote communication control RS232 Local analog voltage control Operation conditions Environment temperature: 0℃-40℃ Relative humidity: 95% (no condensation at +25℃) Atmosphere pressure: 80kPa-106kPa Cooling way Forced air cooling Functional characteristics Control: equipment working status and parameter setting, can view the working status information and configure the working parameters remotely; Alarm: output power, SWR, current, temperature under detection.

Alarm information can be checked remotely; Protection: over-VSWR, over-temperature, over-input power, over-current, over-voltage protection.

The system automatically shuts off the RF output when under protection.

Interface definition Power input: DC-28V RF output: N-50-KFD Control interface: DB9 Air cooling: Built-in fan with DC-28v / 0.5a

Company Contact:

• Posted By: Wattsine Electronic Technology Co.,Ltd

• Phone: +86-028-85964177

• Address: Tianfu softwarePark , No. 1800 of Yizhou avenue of , Chengdu , Sichuan , China

• Email:

• Website: https://www.wattsine.com/

• Business Description: Chengdu Wattsine Electronic Technology Co., lt is a highly developing professional high-tech enterprise locating in Chengdu city which is the capital of Sichuan province in China.

  Wattsine is engaged in solid state RF power amplifier, UWB amplifier systems, mosfet power amplifier, amplifier module, solid state generators, RF generators, microwave generator, RF power supply etc high power amplifier series product development, manufacturing, sales and service.

  The broad band and band -specific RF MW power amplifier frequency range covers 1MHZ-20GHz at 1W-30KW output power under support of our first-rate technology.

  With it's excellent performance, RF&MW linear power amplifier and solid state RF&MW generators series products are widely used in high-energy physics, research and testing, radio and television, plasma actuation, electromagnetic compatibility, medical equipment, industrial applications and make contribution to wireless communications, radar, electronic warfare, interference and other fields.
