Auto Recovery 36w 24v Led Strip Light Power Supply Ip33 Waterproof - China

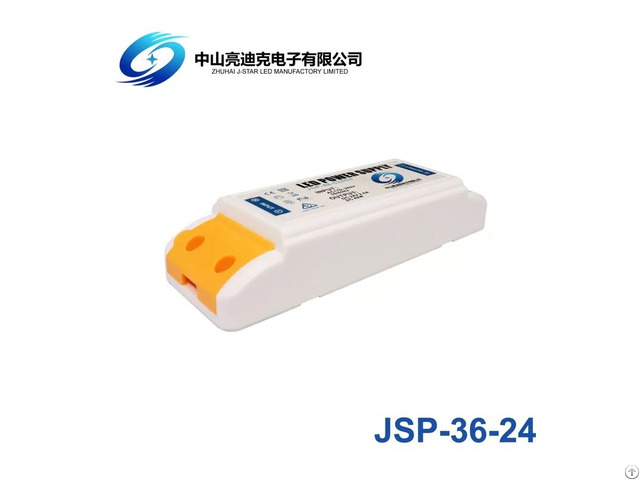

Auto Recovery 36W 24V LED Strip Light Power Supply IP33 Waterproof

Led Tape Light Power Supply SAA Certified 36W 24V For Led Signs Protection:

Open circuit Over load Short circuit Over temperature

Safety Standard:

Safety: IEC61347-1, IEC61347-2-13;

Harmonic: IEC61000-3-2

EMI: IEC55015;

EMS: IEC61547 Specification details: Model JSP-24036

Rated load power 36W

Output Voltage 24V

Output Current 1.5A

Input Voltage range 100-240V

Withstand 2000V

PFC >0.7

Dimmable No

Dimension(mm) L140xW45xH28mm

Efficiency 86%

Frequency 50/60HZ

Ripple 300mV Max

Electronic wire request Teminal blocks

Over loading protection 115%-125% hiccup mode, auto-recovery

Over heat protection <85°C hiccup mode, auto-recovery

Over voltage protection 115%-125% hiccup mode, auto-recovery

Setup, rise, hold up time 200ms, 100ms, 20ms

Isolation resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

Working temperature and humidity -10℃~+60℃(Refer to output load derating curve), indoor or dry

Store temperature and humidity -20℃~+85℃, and dry condition

Certification SAA CE ROHS

Warranty 3 years

Input plug available AUS PLUG, EU PLUG, US PLUG 1 - If without specia explanation, all specifications are measured at an input of 220VAC, rated

load, ambient temperature of 25 ° C .

2 - Ripple & Noise Measurement Method: Use a 12 '' twisted pair, and the terminals are

connected in parallel with 0.1uF and 47uF capacitors and tested at 20MHz bandwidth.
