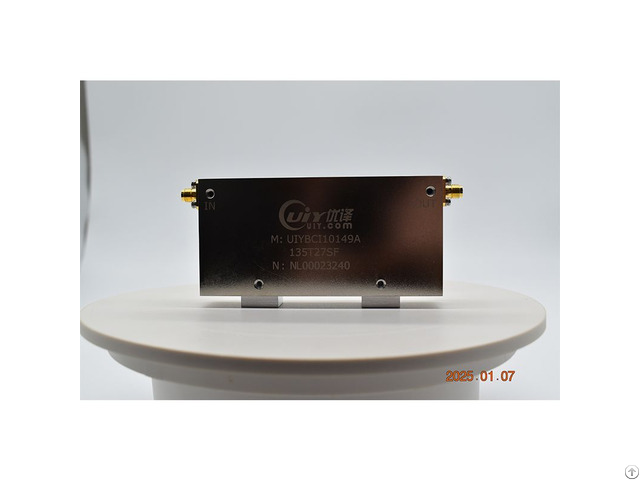

C Band 1 35 To 2 7ghz Rf Broadband Coaxial Isolators With High Isolation 36db - China

Model Number: UIYBCC10149A135T27 SF

Frequency Range: 1.35~2.7GHz

Insertion loss: 1.0dB

Isolation: 36dB

VSWR: 1.3

Forward Power: 100W

Reverse Power: 100W

Connector Type: SMA-F

Temperature: 0~+70°C

UIY RF Broadband Coaxial Isolator Custom Design available: •Operating Frequency from 10MHz to 40GHz.

•Connector Type optional SMA, N, K, BNC, 2.92mm, 7/16 DIN and 4.3-10 mini DIN with female, jack, male, male to female and plug genders.

•Power up to 2000W.

Select the appropriate connector according to the working frequency and purpose.

UIY Inc.

provide Low insertion loss, high isolation, high power handling on RF Module.

Exceptional customer service and technical support are on hand to support our customers.

Company Contact:

• Posted By: UIY Inc.

• Phone: 86-755-83748888

• Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China

• Email:

• Website: https://www.uiyinc.com/

• Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier

  Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.

  UIY Inc.

  was established in 2003 in Shenzhen, China.

  It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.

  The products are sold all over the world.

  Relying on industrial advantages and excellent professional skills, UIY won reputation and public praise in the microwave communications industry under experienced domestic and international operation mode.

  The frequency range DC-112GHz and average power up to 20KW, its products are widely used in civil, military, aerospace, space technology and other fields.

  Product catalog:

  Isolator / Circulator

  Filter / Duplexer / Triplexer

  Power Divider / Splitter

  Hybrid Combiner / Directional Coupler

  Coaxial Termination / Attenuator

  Waveguide to Coaxial Adapter

  Tx & Rx Multicoupler

  Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.

  We are committed to providing our customers with high-quality products for a long time.
