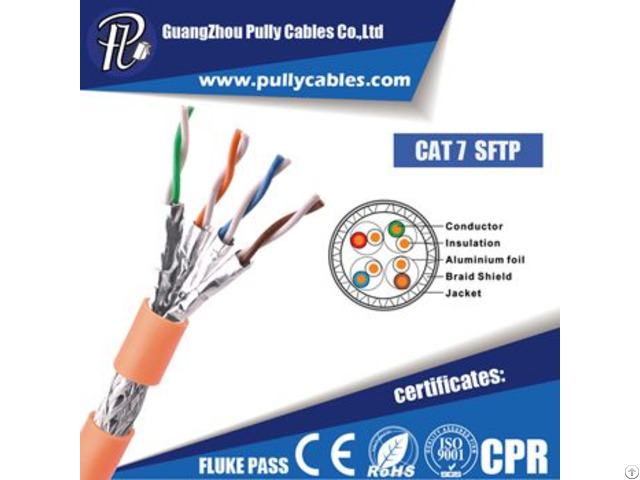

CAT 7 SFTP CABLE

DESCRIPTION:

Cat7SFTP cable provides superior performance to ensure reliability in delivering 10G network speed at at a bandwidth up to 600 MHz.

Its design of each twisted pair is shielded individually with aluminium foil to add physical separation between the four pairs and prevent internal cross talk .

The excellent shielding of four pairs with overall braided screen to prevent immunity from electromagnetic interference.

It applys to 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM and meets the standard of ISO/IEC11801& IEC61156-5&EN50173.

SPECIFICATIONS:

CONDUCTOR SOLID BARE COPPER

CONDUCTOR DIA.

23AWG 0.58MM

INSULATION PE

INSULATION DIA.

1.33±0.02MM

SHIELDING: INDIVIDUALL Y AL.

FOIL + OVERALL BRAID SHIELD

JACKET PVC/LSZH

JACKET DIA.

7.8±0.2MM

NUMBER OF SHIELDED PAIRS

COLOUR CODE PAIR 1 BLUE-WHITE / BLUE

COLOUR CODE PAIR 2 ORANGE-WHITE / ORANGE

COLOUR CODE PAIR 3 GREEN-WHITE / GREEN

COLOUR CODE PAIR 4 BROWN-WHITE / BROWN

ELECTRICAL CHARACTERISTICS:

High frequency (at 20°)

Type Attenuation NEXT PS NEXT ACR PS ACR ACR-F PS ACR-F Return Loss

1 2.0 78.0 75.0 76 73 - 0 78.0 75.0 20.0

4 3.7 78.0 75.0 74.3 7 1.3 78.0 75.0 23.0

10 5.9 78.0 75.0 72.1 69.1 75.3 72.3 25.0

16 7.4 78.0 75.0 70.6 67.6 71.2 68.2 25.0

31.2 10.4 78.0 75.0 67 .

6 64.6 65.4 62.4 23.6


62.5 14.9 75.5 72.5 60 .

6 57.6 59.4 56.4 21.5


100 19.0 72.4 69.4 53 - 4 50.4 55.3 52.3 20.1

125 21.4 70.9 67.9 49 - 6 46.6 53.4 50.4 19.4

200 27.5 67.9 64.9 40 - 4 37.4 49.3 46.3 18.0

250 31.0 66.4 63.4 35 - 5 32.5 47.3 44.3 17.3

300 34.2 65.2 62.2 31 - 1 28.1 45.8 42.8 17.3

600 50.1 60.7 57.7 10 - 6 7.6 39.7 36.7 17.3

Low frequency and D.C. (at 20°C) Specification Unit

D.C. resistance conductor < 9,5 Ω/100m

Insulation resistance ≥5000 MΩ.

km

Mutual capacitance < 56 nF/km

Capacitance unbalance pair to ground < 1600 pF/km

Dielectric strength conductor (2 sec.

) 2.5 kV DC

Characteristic impedance: (1-100 MHz) (100 ± 5) Ω

(100 – 250) MHz (100 ± 10) Ω

(250 – 600) MHz (100 ± 15) Ω
