Cbb65 Compressor Capacitor With 250v 370v 440v 450v 500v - China
price: 1.00 Dollar US$

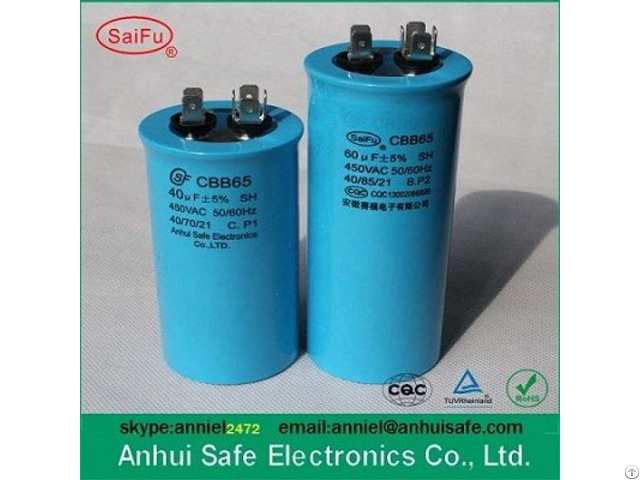

CBB65 Compressor CAPACITOR WITH 250V 370V 440V 450V 500V CBB65 Capacitor for motor and air conditioner use
Specification
The product is equipped inside with reliable explosion-proof equipment and is highly safe.
With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, compressor, etc.
Product type
Film Capacitor
Capacitance range
3uF~120uF
CapacitanceTolerance
±5%~±10% or according to customers’ requests.
Rated Voltage
200VAC, 250VAC, 370VAC, 400VAC, 440VAC, 450VAC, 500VAC, 550VAC, 600VAC, 630VAC, 660VAC
Rated frequency
50/60Hz
Operating Temperature
-40° C~+70° C
-40° C~+85° C
Class of safety protection
P1, P2
Testing voltage
T-T: 2.0Un/60S
Insulation resistance
> =3000s
Tangent of loss angle of a capacitor
tanσ ≤ 0.0020 (100Hz)
Life expectancy
3000h (Class C) or 10000h (Class B) or 30000h(A)
Size
according to chart or users require
Company Contact:
- Posted By: Anhui Safe Electronics Co
- Phone: 8615212297582
- Address: No.1771 Qifeng Road, Shizishan Economy Develpment , Tongling , China
- Email:
- Website: http://www.film-capacitor.com/
Published date: April 6, 2017
- Business Description: We are a manufacturer in China have 20 years experence in
Film capacitors（AC & DC capacitors） and metalized film for capacitor use.
Our factory located in 5000 square
meters and obtained ISO9001 quality certificate, SGS certificate and VDE/TUV/UL/CQC
relevant products certificate.
And we have owned 5 patents for inventions and 10 utility patents.
In 2012 our company was awarded"National Hi tech Enterprise".
