Curved Led Panels - China

FC Series FC 2.5/4

Product Name FC-P2.5 FC-P4

Pixel Pitch 2.5mm 4mm

LED Type SMD1010 SMD2121

Pixel type(R / G / B) 1R1G1B (3 in 1) 1R1G1B (3 in 1)

Module Size 240*120mm 256*128mm

Module Resolution 96*48 64*32

Pixel Density 160000 Dots/M2 62500 Dots/M2

Scan Mode 30S 16S

Driving IC MBI5124 MBI5124

Viewing Distance 2.5m 4m

Brightness 1500cd/M2 1500cd/M2

View Angle 120° (H)/120°(V) 120° (H)/120°(V) Refresh Rate 1920Hz 1920Hz

Input Voltage AC 220/110±15% AC 220/110±15%

Grey Level 14 Bits 14 Bits

MTBF ≥ 10, 000 hs ≥ 10, 000 hs

Operating Temperature -30 ℃ ~ +70 ℃ -30 ℃ ~ +60 ℃

Operationg humidity 10%～75% 10%～75%

Environment Indoor indoor

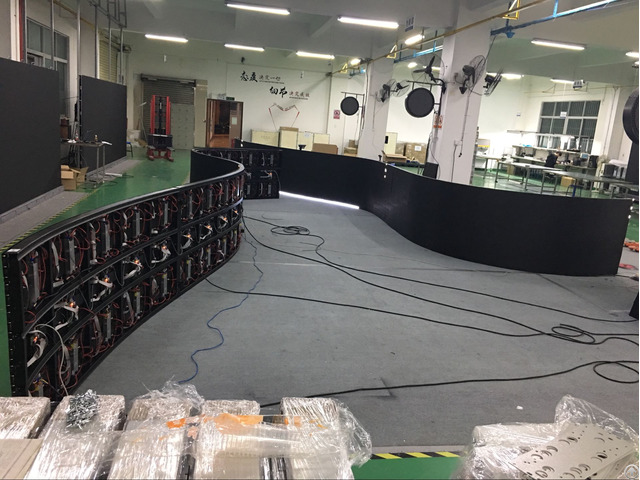

High Definition Full Color Flexible LED Display

Pixel pitch available: P2.5mm, P4mm

Brightness: 1500CD/㎡

Innovative flexible LED display brings limitless possibility to

designers and architects.
