Customized Multilayer Pcb Board For Motherboard - China

price: contact company for price

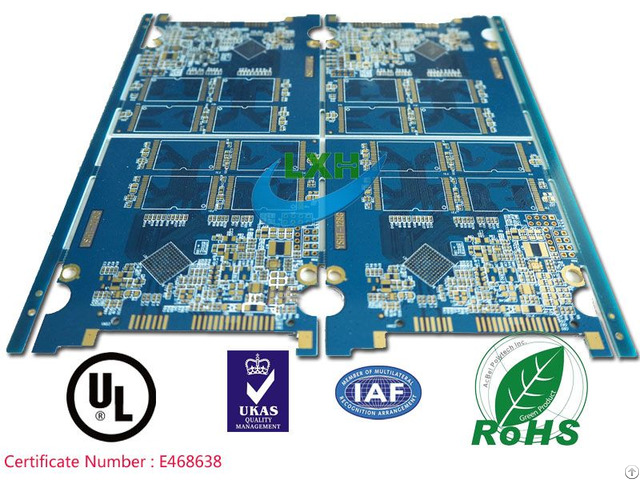

Customized Multilayer Pcb Board For Motherboard

Products Photos Catalog Customized Multilayer Photos Catalog

Technical Capability:

Max layers: 30 layers

Max panel size: 600*650mm

Board thickness Core thickness: 0.15-3.20mm, finished board thickness: 0.30-6.00mm

Min spacing: 0.10mm/4mil

Min line width: 0.10mm/4mil

Min hole: 0.15mm/6mil

Surface treatmentc: HAL-lead free, ENIG, OSP, Electrolytic Gold(120 U''), immersion tin, immersion silver, Gold-finger(120 U'' gold thickness)

Minimum pad: 0.35mm/18mil

Minimum solder mask bridge: 3mil (0.076mm)

Aspect ratio: 10: 1

Outline tolerance: +/-4mil(+/-0.1m m)

Hole Wall Copper Thickness: 0.025mm/1mil


Warpage <=1.5%

Aperture tolerance: ±0.05mm/2mil

Thermal Shock: 288ºC, 10S, Three times


Company Contact:


  • Phone: 86-755-33691075

  • Address: Tongfuyu industrial park, Zhenmei Villiage, Guangming new District, Shenzhen , Guangdong , China

  • Email: Email

Published date: June 29, 2016

  • Business Description: We can provide:

    1 - Quick turn around pcb manufacturing.

    2 - 1-30 layers pcb manufacturing including HDI board, High TG, impedance control, Aluminum substrate, flexible board and rigid-flexible board etc.

    3 - One-stop service from PCB to PCBA including components sourcing.
