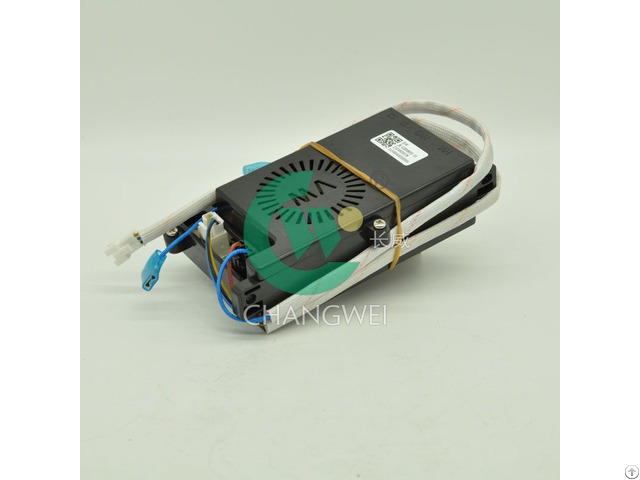

Gas Oven Control Board With Csa Approval Bw Tk081 - China

This gas oven controller is applied to gas oven.

The design consists of two GND electrodes which can spark at the same time, two separated flame sensors and one solenoid valve.

CSA certification is requested.

The rated operating voltage is 120V and sparking rate is 60Hz.

Technical parameter

oven control board manufacturer：Guangdong Baiwei Electronic Co., Ltd.

Operating voltage range 110VAC-130VAC

Standby power consumption ≤1.5W

Operating current ≤1.5A

Valve pull-in voltage 3.0±0.2V

Sparking voltage 3.5±0.5V

Sparking current ≤150mA

Sparking rate ≥7Hz

HV output ≥12kV

Sparking pulse width ≥12us

Valve pull-in current ≥450mA

Valve hold current ≥5mA

Sparking time 5±2s

Valve pull-in time 1±0.5s

Sparking interval 12±2s

Maximum sparking time 3

Operating humidity range ≤95%

Operating temperature range -20℃～85℃

Storage temperature -40℃～70℃

Operating life ≥250000 cycles

Sparking gap ≥5mm

Energy output ＞1.0mJ
