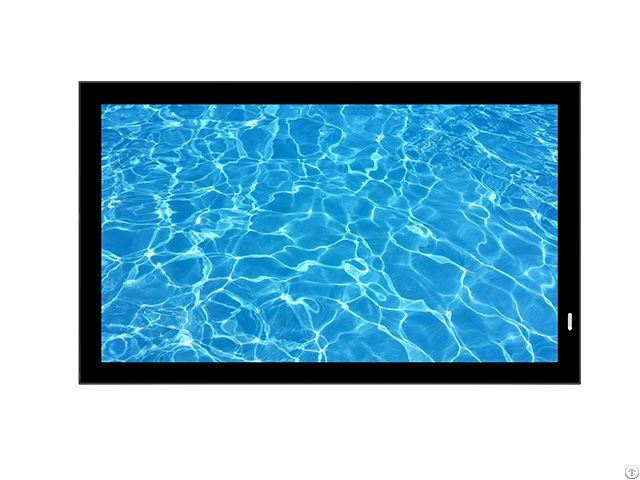

High Brightness Tft Lcd Panel 32 Inch 1500 Nits - China

price: contact company for price

High Brightness Tft Lcd Panel 32 Inch 1500 Nits

Products Photos Catalog Brightness Tft Lcd Photos Catalog

Screen Diagonal 32 inch

Brand Risingstar

Model No RS320FHB-ND20

Active Area 698.4(W)×392.85(H) mm

Resolution 1920(RGB)×1080, FHD, 69PPI

Physical Size 731.9(H)*431.4(V)*59.5(D)

Pixel Arrangement R.G.B.

Vertical Stripe

Display Mode a-Si TFT-LCD, LCM

Contrast Ratio : 1200: 1

White Luminance ( Center ) 1500 cd/m2 (Typ.

) [cd/m2 ]

Optical Response Time 8 (Typ.

)(G to G) ms

Nominal Input Voltage 12.0V (Typ.

)

Frame Rate 60Hz

Viewing Angle 89/89/89/89 (Typ.

)(CR≥10)

Weight [kg] 4.85(Typ.

)

Interface Type 51 pins LVDS (2 ch, 8-bit)

Support Color 16.7M, 72% NTSC

Surface Treatment Antiglare (Haze 1%), Hard coating (3H)

RoHS Compliance RoHS Compliance

Temperature Range 0 ~60 °C

Storage (Non-Operating) -20 ~ 60 °C


Company Contact:


  • Phone: 13751187573

  • Address: Guangdong province, China, shenzhen city, 广东省 , China

  • Email: Email


Published date: March 22, 2024 - Modified date: March 22, 2024

  • Business Description: LCD OUTDOOR AND INDOOR DISPLAY ; LCD high brightness panel: LCD waterproof monitor; LCD factory; Sizes from 10.1 inch to 98inch; Brightness from 350nits to 5500nits; Own design LED backlight; Own design Aluminum structure
