High Frequency Non Contact Radar Level Gauge - China

price: 2000.00 Dollar US$

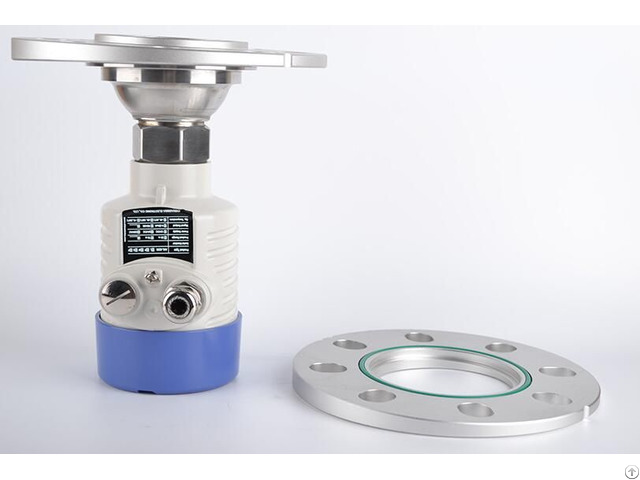

High Frequency Non Contact Radar Level Gauge

Products Photos Catalog Frequency Radar Level Photos Catalog

Frequency range: 26Ghz;

Non-contact;

measurement range: 20/30/70/80(m) {optional}

Measuring accuracy: ±10mm

Signal Output: RS485/HART

Working tempeature: -40.85℃


beam angle: <8º

OEM/ODM acceptable

Hysteresis：±5mm;


Working humidity: ≤95%RH;

Product size: 12*9.4*49cm

Power apply: 16…36VDC

Processing connection: Flange;

Features and benefits

-Transmitting frequency as high as 26Ghz

-Non-contacting radar, no abrasion and contamination.

-Small-sized antenna for easy installation

-Shorter wave length, better reflection achieved on inclined solid surface

-Smaller dead zone, better results ensured even in cannikin measurement.

-Small beam angle and concentrated energy to avoid interferences.

-Hardly influenced by corrosion and foam

-Hardly influenced by changes of steam vapor, temperature and pressure

-Hardly impacted by heavy dust

-High SNR to ensure performance even under fluctuation

-Choice for solid media and media with low dielectric constant


Company Contact:


  • Phone: 86-13763800554

  • Address: Mawei District, Fuzhou , Fujian , China

  • Email: Email


Published date: July 10, 2017

  • Business Description: Radar leve gauge, Industry automation, Electronic ODM/OEM, Electronic design and engineering, Embedded software design and engineering etc.
