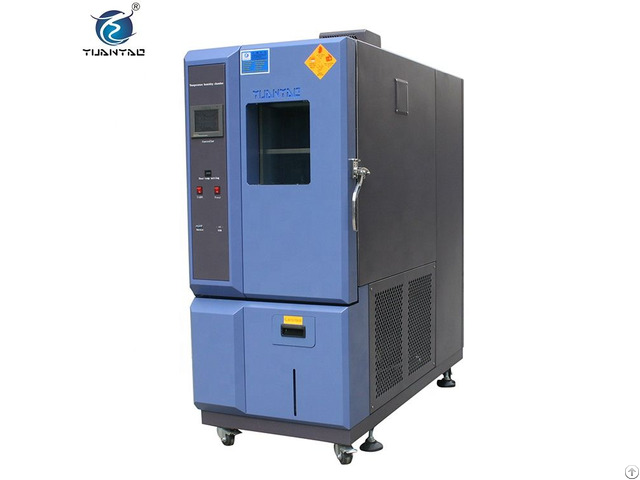

Hot Cold Climate Humidity Test Chamber - China

Warm cold climate test chamber is mainly and widely used for various types of testing such as prototype evaluation, research & development testing, production quality control testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.

Climate test chamber features: 1 - Programmable Controller with RS232C, 7 LCD touch panel control 2 - Stainess steel Interior, galvanized steel sheet exterior 3.2PCS stainless steel loading shelves free 4 - Multipane viewing window with heater 5.60mm diameter feed-through port 6 - Floor stand with castors Specification

Model YICT-225 Internal Dim.

W×H×D(mm) 500×750×600 Temperature Range -70ºC-- -150ºC(KS); -40ºC-- -150ºC(KL); +20ºC-- -150ºC(KR)

Rapid Changes Temp.

Range -70ºC;-50ºC-- +85ºC(KS), -40ºC; -20ºC-- +85ºC(KL), -20ºC; 0ºC-- +85ºC(KR)

Heating & cooling rate 3ºC/min, 5ºC/min, 8ºC/min, 10ºC/min, 15ºC/min

Ferformance Temp.

Constancy ±2.0ºC

Temp.

Constancy ±1.5ºC

Indication Resolution 0.01ºC

Heat-up Time -70ºC-- -150ºC in 60min; -40ºC-- -150ºC in 50min; +20ºC-- -150ºC in 35min

Pull-down Time +20ºC-- -70ºC in 70min; +20ºC-- -40ºC in 55min; +20ºC-- -20ºC in 35min

Material Exterior Stainless steel piate+powder Coated

Interior SUS#304 stainless steel piate

Insulation PU & Fiberglass wool

Systems Cirulation Siroco fan

Heating Heater;stainless-gang Fin-type heat pipe heat pipe heating mode of air circulation

Cooling Airtight compressor+vaporator fins+air-cooling condenser Other Components Vacuum glass inspection window, cable port(ø 60mm), control status indicator lights, chamber lamp, experiment separation shelves(freely adjustable 2pcs) Sevey Devices No fuse overload protection, the compressor overheating, over-current, over-pressure, dry heat, inside the over-temperature warning system Power Source[K.W.] AC 3Ψ 380V 60/50Hz
