Hrf Hd8 Heavy Duty Footswitch - China

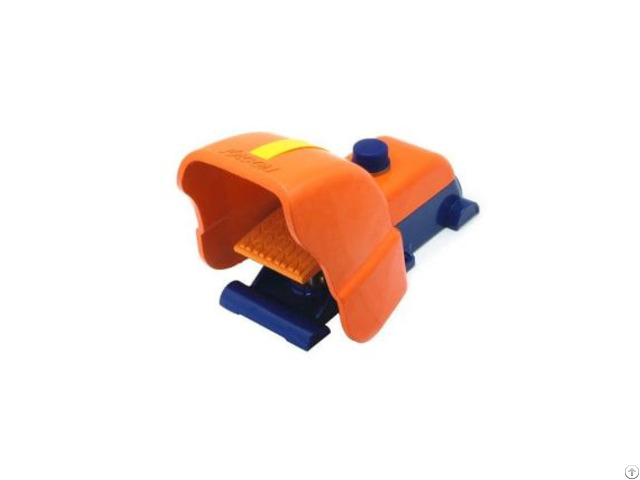

Kacon HRF-HD8 type foot switch is commonly used in industrial equipment, it is an indispensable part in the production process.

Standard fixed height, according to the use of two stroke adjustment can be easy to operate.

Ergonomic principles, low pedal position and anti-skid design of the pedal.

The use of blue LED indicator light enhanced signal.

Adopt the arc design with strong impact resistance.

Electrostatic spraying powder treatment.

Protective cover design with smooth protruding surface.

It can effectively prevent the wrong action caused by falling objects.

Various of load capacity contacts can be selected according to different application occasions and requirements.

HRF-HD8 type foot switch with the waterproof grade of double silicone gasket can reach IP67 - Foot switch have CE, CCC, UL certifications, the internal micro switch have UL, VDE, CCC, CE certifications.

Mechanical lifespan up to 1 million times with 24K gold plated contact.

Features

• CE/CCC/UL/c-UL certified

• The micro switch: 3 options (KSB1, Z15G-10B, V15F-060C)

• Housing materials: aluminum alloy

• Wiring available

Specification

The industry's first anti-impact 200J type

Using the foot to simulate mouse or keyboard keystrokes.

Customize the software for the desired application.

Windows and MAC compatible, USB 1.1 compatible.

Variable flow.

NC contact meets European as well as American standards.

PLC interface compatible.

CNC circuits can be connected to different loads and polarity.

Standard with single PG 16 threaded conduit inlet.

The protective cover is a strong molded polymer material.

Inlet of 1/2 "-14 NPT catheter.

Steel passivated drive mechanism.

Provides two holes for rigid mounting to floor or equipment.

Mechanical interlocking prevents the two circuits from working simultaneously.

HRF-HD8 Safety-reset type Anti-operation

-error lever type Two-step operation type Self-holding type Pedal connection products

Part Number HRF-HD8S811 HRF-HD8L811 HRF-HD8S212 HRF-HD8S311 HRF-HD8S202P

Contact Form 1N/O+1N/C 2N/O 1N/O+1N/C 2N/O/1NO+1N/C

Rated Current 20A 250VAC

Built-in Switch KSB1-S KSB1 KSB1 KSB1-A KSB1

Material Aluminum die-casting

Certification CE, CCC, UL

Degree of Protection IP67

※ Please refer to the catalog for the detailed product selection and specifications.
