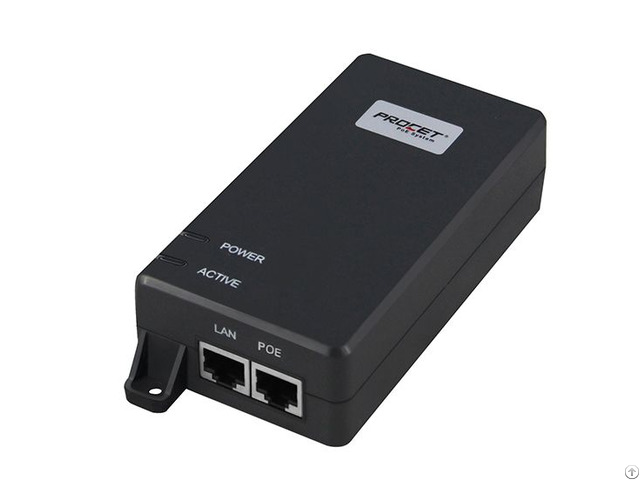

indoor Industrial PoE injector PT-PSE104GB-60-5

PT-PSE104GB-60-5 is a single port midspan Injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.

Designed for the poe injector 60w (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps/5GBps of data rates.

Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices.

Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with Wall-mounted.

It operates with a wide input voltage of 100-240 VAC.

The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

PoE Injector for camera

Parameter Description

Key Features Wall-mounted

Part Number PT-PSE104GB-60-5

Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1

Regulatory Compliance IEEE802.3bt

RoHS Compliance

WEEE Compliance

Pass Through Data Rates 2.5GBit/s, 5Gbit/s

Output Pin Assignment and Polarity:

4/5 (+), 7/8 () and 3/6 (+), 1/2 ()

Output Power Voltage: 55Vdc

User Port Power: 60W Guaranteen

Input AC Input Voltage: 100-240 Vac

Frequency: 47 to 63Hz (50/60Hz Typ.

)

AC Input Current: 1.5A

Working Environment Operating Temperature: 0℃to 40℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -20℃to 70℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

PoE Surge Protection Protected line: 1, 2, 3, 4, 5, 6, 7, 8

Common mode surge protection(10/700us): 6KV

Differential mode surge protection (10/700us): 1.5KV

AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV

Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics Case: Plastic

Color: Black

Mounting: Wall-mounted

IP Rated: IP40

Connectors: Shielded RJ-45*2

Size: 145.51mm X 65.8mm X 33.5mm

Weight: 255g8.99oz

LED Indicator Power Indicator : Green

PoE Load Indicator : Green @≤30W Blue @30W≤60W

Warranty 2 year

Safety Approvals cUL/UL/FCC/CE
