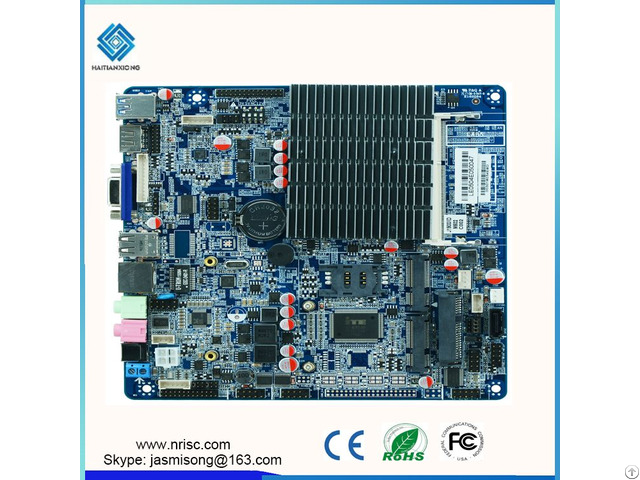

ITX Industrial J1900 Quad-core Motherboard Introduction

The HTX_M50 is an industrial single board computer based on Intel®Celeron J1900 4Cores 2.0GHz.

Compatible with Intel® Bay Trail-I / M / D all series of CPUs, integrated Intel® HD core graphic, provide LVDS, VGA, HDMI display output, support synchronous / asynchronous displays, rich I / O, 1 * Gigabit Interface, 1 * SATA2.0, 1 * Mini-PCIE slot (support WIFI, 3G module), 1 * mSATA slot, 8 * USB 2.0, 1 * USB3.0, 6 * RS232 / RS485 /RS422 - HTX_M50 with the features of high performance, low power consumption, fanless, it can be widely used in industrial equipment, including self-service terminals, industrial automation, digital signage, IOT, intelligent terminal, industrial human-machine interface, medical electronic, traffic control, robot, UAV, industrial 4.0 and so on.

Specification

CPU Intel® Celeron J1900/4Cores/2.0GHz or J1800/ 2Cores / 2.41GHz processor, compatible with Intel® Bay Trail-I/M/D all series of CPU for flexible selection

Chipset Based on Intel® Bay trail SOC

Memory Support single channel 1600/1333MHz DDR3L/ 1.35V memory, max support 8GB

Display Integrated Intel® HD Core Graphics Card

Provide 1*VGA, 1*HDMI, 1*LVDS(support dual channels 24 bit)

Support VGA, HDMI, LVDS Synchronous / asynchronous displays

LAN Integrated 1xRealtek RTL8111F Gigabit Ethernet(Optional 2 LAN), eg.

ITX-M50_2L, support network wakeup/PXE

Storage Provide 1xSATA2.0, 1x 2.5" SATA 5 hard disk (choose one only)

1*SATA 2.5" laptop hard disk way, can install HD directly

1*MSATA slot, transmission speed 3Gbps

Audio Onboard ALC662 6-channel Hi-Fi audio controller, support MIC/ Line-out, recommend 2Ω 5W speaker

Extension 1*Mini-PCIE Slot, support WIFI, 3G modules

1*MSATA slot, support SSD, transmission speed up to 3Gbps

Back I/ O Ports 1* HDMI, 1* VGA, 3* USB 2.0 Interfaces 1*USB3.0, 1* RJ-45 LAN Interfaces, 1* Line out port(Green), 1* MIC(Red), 1* 12V DC power input prot

Power Adopt DC 12V power supply

Work Environment: Temperature: -10ºC~60ºC, Humidity: 10%~90%RH@31ºC, no condensation

Storage Environment Temperature: -20ºC~70ºC, Humidity: 10%-95%RH@39ºC, no condensation

Size 170mm x 170mm

Internal I/O Port 1* 4pin ATX Power Port(can be used to input/output 12V power)

1* 2pin 12V DC power input port, 4* USB 2.0, 1* USB 2.0, 1* J_HDMI, 1* JVGA

1* PS/2 keyboard mouse port, 1* LPT Parallel port, 1* front audio port

6* RS232 serial (Optional 2or 6 serial ports), COM3 support RS485/RS422

1* front switch and indicator port, 1* amplifier port

1* LVDS, support dual channels 24bit, 1* LVDS backlight power supply port, 1* HD power supply port, 1* SIM casette

Fan Interface Fanless ridiating design.

Reserved 1*4pin CPU fan port, 1* 3pin system fan port

GPIO Support 4 channels input/output GPIO
