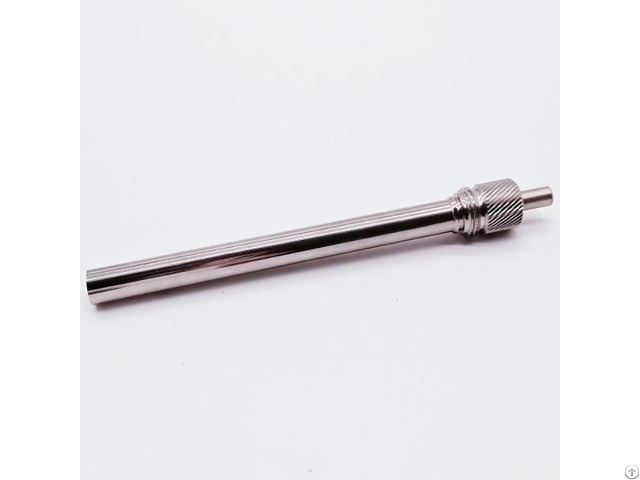

Low Voltage Ptc Tubular Heater - China

Product overview

PTC heater for ventilator is a type of tubular PTC heater.

Due to its water-heating feature, it can be used for the core part of ventilator.

Unlike other traditional heating material, it is equipped with self-regulating PTC elements, thus will not be damaged even if it is under the condition that with no water flow, and has longer service life.

In addition, it is less power-aging and more energy-saving.

Power will be adjusted by water temperature and flow rate.

Remark:

- Housing material can be chose among a variety group of material including aluminum, stainless steel or cooper to suit for different application.

- Diameter can be designed ranging from 5-25 mm.

Length can be designed ranging from 60-200 mm.

Technical Data:

Model Diameter (mm) L (mm) P (W) V (VDC)

C-45W-30VDC Φ9 97.3 40~50 30

C-55W-30VDC Φ9 97.3 50~60 30

C-55W-40VDC Φ9 129 50~60 40 Product feature

As Self-regulation PTC elements.

Heater will not be damaged even if under the condition without water flow.

Power will be adjusted automatically by water temperature.

Less power aging due to excellent structure design.

Energy-saving.

Fast-heating.

Temperature will quickly decrease when the power increase.

PTC has a Max.

current when initially operating.

Power will be adjusted automatically by water flow rate to suit for various settings.

Flow rate increase leads to power increase.

Excellent corrosion resistance due to the application of corrosion-resistant material
