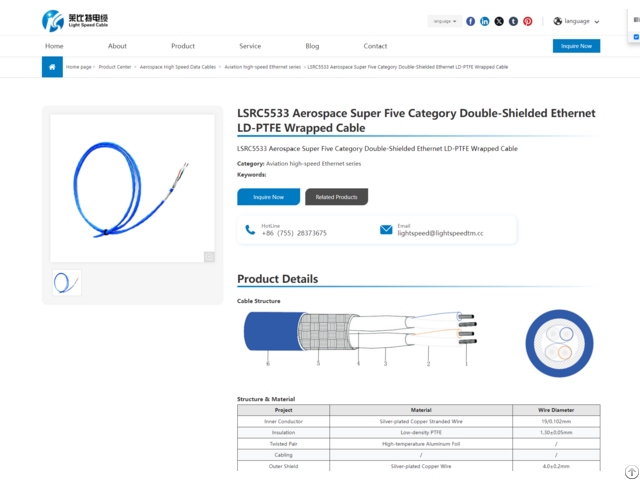

LSRC5533 Aerospace Super Five Category Double-Shielded Ethernet LD-PTFE Wrapped Cable

Category: Aviation high-speed Ethernet series Structure & Material Project Material Wire Diameter Inner Conductor Silver-plated Copper Stranded Wire 19/0.102mm Insulation Low-density PTFE 1.30±0.05mm Twisted Pair High-temperature Aluminum Foil / Cabling / / Outer Shield Silver-plated Copper Wire 4.0±0.2mm Jacket Blue FEP 4.50±0.20mm Electrical & Physical Properties Impedance 100±15(Ohm)

Capacitance ≤45(pf/m)

Delay 4.30(ns/m)

Conductor to Conductor 1.5(KV/DC)

Conductor to Shield 1.0(KV/DC)

Minimum Bending Radius 45 mm

Insulation Resistance 1500(MΩ.

Km)

Operating Temperature Range -55~165(℃)

Weight 32 (g/m)
