Lyso Scintillation Crystal Cerium Doped Lutetium - China

LYSO(Ce) - Lutetium Yttrium Orthosilicate (Lu₂SiO₅: Ce) is a relatively new scintillator crystal that features high density, high light output, short decay time and good radiation resistance.

These properties make it ideal for detecting and measuring ionizing radiation such as gamma rays and positrons.

Specification Parameter Properties Value Unit

Density 7.35 g/cm³

Melting point 2323 K

Effective atomic number 65 Hardness 5.8 Mohs

Refractive index 1.82 Light yield 33200 Photon/Mev

Decay Constant 36-38 ns

Wavelength of emission max 420 nm

Anti-radiation ＞108 rad

Radiation length 1.15 cm

Hygroscopic No LYSO (Cerium doped Lutetium) is a high-performance inorganic scintillator characterized by its high density, fast decay time, and exceptionally high photon yield.

Thanks to its excellent timing resolution and low afterglow, LYSO is widely used in time-of-flight positron emission tomography (TOF-PET), small animal imaging, and high-energy physics detectors.

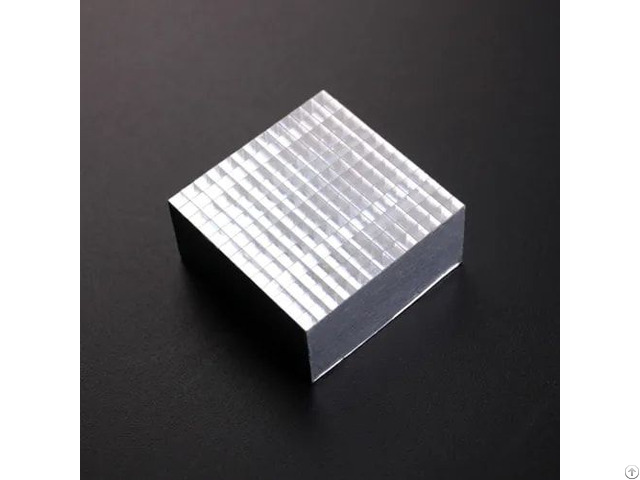

EBO offers LYSO crystals in a wide range of sizes and geometries, including bars, pixels, and complex array configurations.

EBO supports custom fabrication to meet specific detector design requirements.

The minimum pixel size EBO can manufacture is 0.2 × 0.2 mm.

A variety of surface coatings or reflective materials—such as ESR, BaSO₄, and E20 - Advantage of LYSO Crystal:

High light output - 70% NaI(Tl), 25 photons/keV

High energy resolution, high CTR, energy resolution - <12%

High density - 7.15 g/cm³

Fast decay time - c.

45ns

Non-hygroscopic

Various reflector coating technologies (ESR, BaSO4, E60)

Fully customizable Application of LYSO Crystal:

Positron emission tomography (PET)

TOF-PET

Small animal PET

Organ-specific PET

Particle detection

Radiation detection

Time-of-flight measurement

Industrial/medical CT/XCT

Distinguishing between gamma rays and neutrons

Specialized applications in nuclear physics and high energy physics
