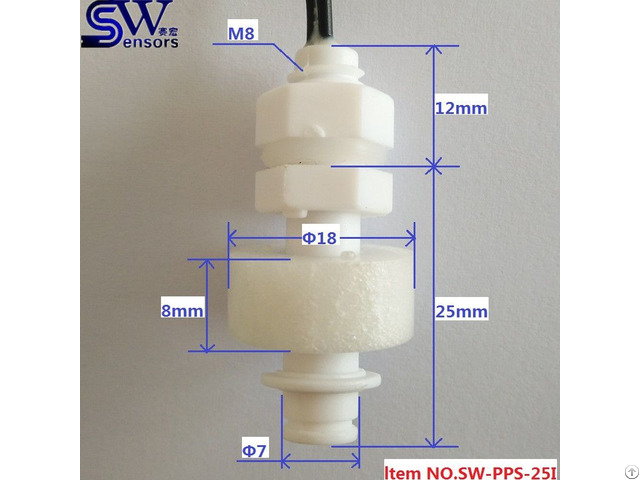

Mini Float Switch Length=25mm - China

We are engaged in exporting, distributing, importing and supplying excellent quality Water Float Level Sensor to our valuable clients in Dongguan, Guangdong, China.

1 - Operation Principle:

The working principle of the float level switch is direct and simple, usually set a point or a few points of

Reed Switch in a sealed non-magnetic metal or engineering plastic tube.

And then fix the float ball with magnetic system built in in the position of reed switch which in the tube

body, letting the float fluctuate within a certain range.

Using of the magnetic system of the float ball, activate the reed switch to open or close through the tubebody.

In the result of producing switching action and control the level.

2 - Application:

Float level switches are widely used in electronic, electrical, chemical, water treatment, drainage and other industry of level control and alarm.

3 - Characteristic:

1 - Acid and alkali resistant materials: PP, PVDF, NYLON, NBR etc.

2 - Stainless steel SUS304, SUS316, max working temp.

350℃, max proof pressure 60kg/cm2

3 - PP switch body length can reach 120mm~400mm, the length can be adjusted according to your water

tank, switch body is durability.

4 - Multiple wires: electrical wire or cable wire, PVC, XLPE, PTFE materials.

5 - Multiple installations, dimensions, from M8~M16, 1/8" ~ 1/2", PF/PT/BSP etc.

Supplier Product Code: SW-PPS-25I

Competitive Advantages of the product

Competitive Advantages

1 - Professional and High Quality Control

2 - Prompt Delivery, 3 - Customer's Design and Logo are Welcome, 4 - Competitive Prices, 5 - Earth-friendly Products, 6 - In a Variety of Design, 7 - Small Order Acceptable, 8 - ODM Accepted, 9 - OEM Accepted

10 - Short Lead Time

Main Markets/Key Customers : India, USA, UK, Asia, Turkey

Delivery Terms : Exw Dongguan

Delivery Lead Times : 7-14days

Payment Terms : T/T, Western Union

Min Quantity : 100

Price Information : 1-10 USD

Quality Process Certifications : CE, RoHs, FDA
