MPO/MTP 100G QSFP28 SR4

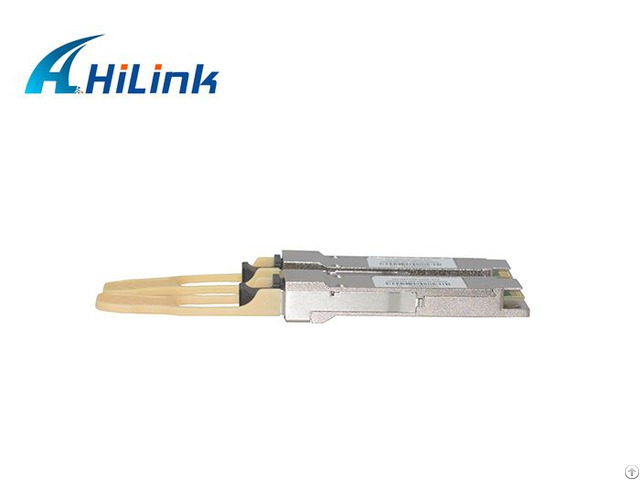

The Hlink 100G QSFP28 SR4 optical transceiver is up to 100m OM4 MMF Distance

PRODUCT DESCRIPTION

qsfp sr4 Features

MTP/MP0 optical connector

Single +3.3V power supply

Hot-pluggable QSFP28 MSA form factor

Up to 100m OM4 MMF Distance

4x28G Electrical Serial Interface (CEI-28G-VSR)

AC coupling of CML signals

Low power dissipation(Max: 3.5W)

Built in digital diagnostic function

Operating case temperature range: 0℃ to 70℃

Compliant with 100GBASE-SR4

I2C Communication Interface



100G QSFP28 SR4 Applications

100GBASE-SR4

Infiniband QDR/DDR/SDR

100G Datacom connections

HL-QSFP-40G-SR4

Item Description

Transceiver form factor QSFP+

Transmission speed 40GE

Center wavelength (nm) 850

Standards compliance 40GBASE-SR4

Connector type MPO/PC (8-strand or 12-strand, type B, female connector)

Applicable cable and maximum transmission distance Multimode fiber (OM3): 0.1 km Multimode fiber (OM4): 0.2 km Transmit power (dBm) -7.6 to +2.4

Maximum receiver sensitivity (dBm) -5.4

Overload power (dBm) 2.4

Extinction ratio (dB) 3.0

Operating temperature 0°C to 70°C (32°F to 158°F)

Part number HL-QSFP-40G-SR4

Standards

Compliant with IEEE 802.3ba

Compliant with QSFP28 MSA hardware specifications

Compliant with RoHS

Hilink QSFP28 series

Package Part Number Data Rate Reach Wave TX RX Sens Power Cons Interface (km) (nm) (dBm) (dBm) QSFP28 SR4 HL-QSFP28-SR4 100G 150m 850 -8.4～2.4 -10.3 <2W MPO

QSFP28 PSM4 HL-QSFP28-PSM4 100G 2km 1310 -6.0～2.0 -10.1 <3.5W MPO

QSFP28 CWDM4 HL-QSFP28-IR4 100G 2km CWDM -6.5～2.5 -10.1 <3.5W LC

QSFP28 LR4 HL-QSFP28-LR4 100G 10km LAN WDM -4.3～4.5 -10.6 <3.5W LC

QSFP28 LR4 25KM HL-QSFP28-25K 100G 25km LAN WDM -4.1～4.5 -11.5 <3.5W LC

QSFP28 ER4 Lite HL-QSFP28-ER4 100G 40km LAN WDM -2.5～4.5 -18.5 <4W LC
