Rhh Rhw Use - China
price: contact company for price

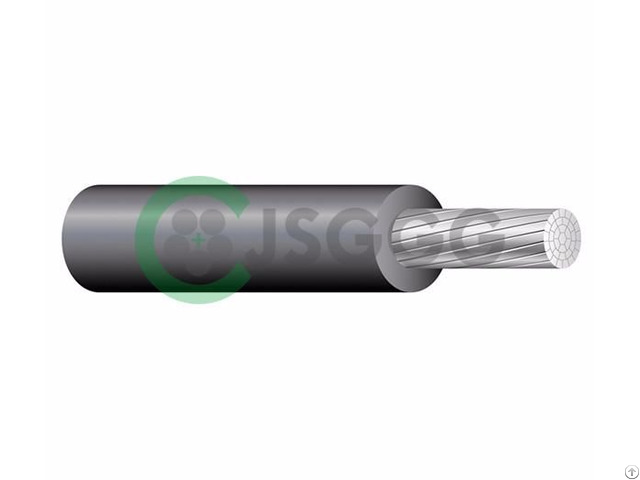

RHH RHW USE Voltage
600V or less Construction
RHH or RHW-2 or USE-2 aluminum conductors are AA-8000 series Aluminum Alloy, compact stranded.
Insulation is an abrasion, moisture, heat, and sunlight resistant black cross-linked polyethylene (XLP).
Copper conductor is also available.
Standard
RHH or RHW-2 or USE-2 conductors meet or exceed UL Standard 44 (for RHH or RHW-2), UL Standard 854(for USE-2), Federal Specification A-A-59544, and requirements of the NEC.
Or other standards required by customers.
Features
1-40℃90℃
2 - Abrasion, high-Heat and Moisture and Sunlight Resistant.
3 - VW-1 or higher required by UL.
Applications
1 - RHH or RHW-2 or USE-2 conductors are used with conduit as specified in the NEC.
2 - May also be used as underground service entrance cable, for direct burial, at conductor temperatures not to exceed 90℃.
3 - When used as RHH, conductor temperatures shall not exceed 90℃ in dry locations.
4 - When used as RHW-2 or USE-2, conductor temperatures shall not exceed 90℃ in wet or dry locations.
Package
steel & wooden reel, wooden reel, steel reel, in coils on wooden tray, or other requirements by customers.
Company Contact:
- Posted By: Jiangsu Sanqi Cable & Wire Co., Ltd,
- Phone: 0513-68971818
- Address: Rudong economic development area, Jiangsu, China , Rudong , Jiangsu , China
- Email:
Published date: April 27, 2017
- Business Description: Sino-Cable manufacture cables with AA 8000 series aluminum alloy cable, power cable, rubber cable, solar cable, xhhw-2, use-2, ser/seu, MC, MHF, UD Wire Cable.
