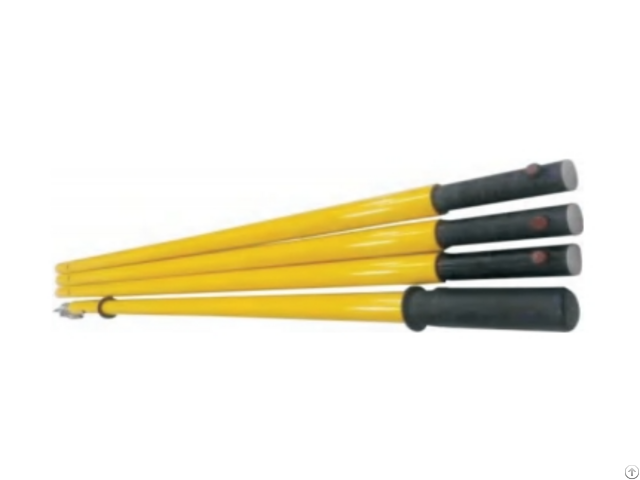

Sectional Hot Stick - China

Note:

1 - Top section diameter: Φ 32mm .

Based and intermediary section diameter : Φ38mm.

2 - Material:

Universal head and Hook : aluminum alloy

Main body: foam filled fiberglass tube

Protection limitation: insulation rubber ring

Handle : insulation rubber Bag: waterproof nylon bag

3 - Color: Yellow or Orange

Products

Code

213001 Hot stick - 1 section

OverallLength(mm): 1250

Max voltage(kV): 20

Approx .

weight(kg): 0.91

213002 Hot stick - 2 sections(bottom + top)

OverallLength(mm): 2700

Max voltage(kV): 150

Approx .

weight(kg): 2.31

213003

Hot stick - 3 sections(bottom +middle+ top)

OverallLength(mm): 3950

Max voltage(kV): 300

Approx .

weight(kg): 3.55

213004

Hot stick - 4 sections(bottom +2 middle+ top)

OverallLength(mm): 5200

Max voltage(kV): 400

Approx .

weight(kg): 4.78

213005

Hot stick - 5 sections(bottom +3 middle+ top)

OverallLength(mm): 6450

Max voltage(kV): 500

Approx .

weight(kg): 5.99
