Single Layer Metal Clad Circuit Board Factory - China

Welcome To ShenZhen DiHe ShenZhen DiHe Electronic CO., LTD., your best option for pcb manufacturing, components source and one-stop pcb assembly.

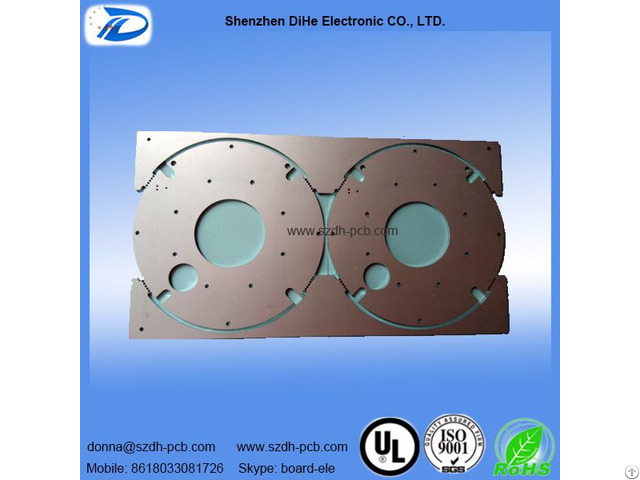

1 - Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: ShenZhen DiHe

Base Material: Aluminum base

Copper Thickness: 1oz Board Thickness: 1.6mm

Min.

Hole Size: 0.2mm Surface Finishing: HAL LEAD FREE

Wrap and twist: : ≤0.75%

Standard: : IPC-A-6012

Service type: printed circuit board manufacturing (One-stop turnkey service)

CTI: >600V

Thermal Conductivity: 1.3, 1.6, 2.0, 3.2W/m.

k 2 - Packaging & Delivery Packaging Details: Anti-static(vacuum) package with high quality carton box

Delivery Detail: 5-7days 3 - Specifications 1 - Competitive Price, fast reply for RFQ

2 - UL, ISO9001, ISO14001, ROHS Certificated

3 - High Quality, 100% E-Testing OR Flying Probe Testing (100% Function Test Service )

4 - Free samples available.

4 - Payment Terms: T/T, L/C, D/P, WEST UNION, Paypal Accepted

Company Contact:

• Posted By: Shenzhen Dihe Electronic Co., Ltd.

• Phone: +8613480900911

• Address: No. 6, 8 Alley, FuHe Road west, GongHe, ShaJing, Shenzhen , GuangDong , China

• Email:

• Website: https://www.szdh-pcb.com

• Business Description: Multilayer PCB, Metal core PCB, fast PCB and middle-small batch PCB with multi-species, small batches, short delivery time and high level.

  Our factory is with ISO9001, ISO14001, UL and ROHS certified.

  All materials used are environmentally friendly and lead free.

  We have advanced manufacturing equipments and skillful production and technical team staff.

  Which make us better and better.

  Now we can make PCB up to 20 layers, the Min.

  mechanical drill hole is 0.15mm, the Min.

  laser drill hole is 0.075mm, the min.

  circuit width/ spacing is 0.0635mm/0.0635mm(2.5/2.5 mil).

  We have rich experience in producing heavy copper PCB, metal core PCB, high frequency PCB, high TG PCB, high precision controlled impedance PCB, halogen free PCB and mixing plate PCB.

  These products are widely used in communication, security, industrial power, medical equipment, aerospace, military, automotive electronics, power supply and computer area.

  We are well recognized by customer due to reliable quality, good price, and fast delivery.

  The product type are as follows:

  Non-PTH single- and double-sided PCBs

  Copper through-hole PCBs

  Silver through-hole PCBs

  Ultrathin ML (100μm/layer)

  Plated through-hole PCBs

  PCBs with blind vias

  HDI PCBs

  PCBs with thick copper

  Multilayer PCBs, miscellaneous

  Bondable PCBs

  Metal core PCBs

  Micro via PCBs

  PCBs on aluminum substrates

  HF PCBs

  Impedance-controlled PCBs

  Press-fit component PCBs

  Ultrafine-line circuitry (< 50μm)

  PCBs, other

  PCBs

  In order to meet all kinds of needs of customer, we also do some pcba(PCB Assembly), we produce pcb in our own factory, and source components for customer, then do assembly in SMT factory.

  Therefore, if you have any interest about this part, a gerber and BOM are welcome.
