Standard Usb 2 0 A Type Female Right Angled - China

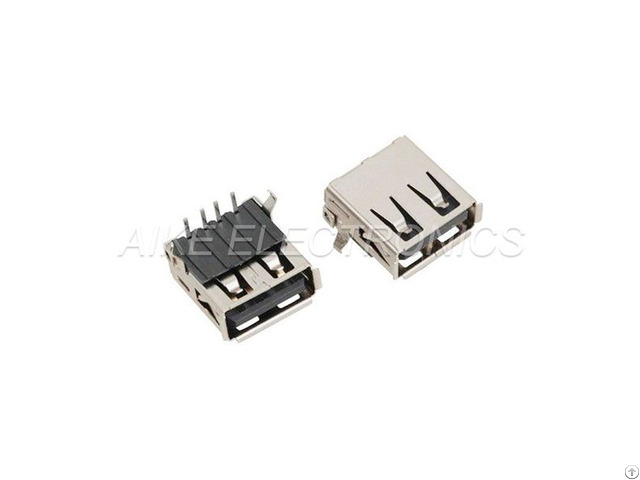

Standard USB 2.0 A Type Female, Right Angled, DIP type

SMT Type USB 3.0 a Type

With USB3.0 a Type Female

Introduction：

Standard USB 2.0 A Type Female, Right Angled, DIP type, Black or White or customized colour, Normally Tray Package.

Used for TV Board, Game Machine board, Or Charging eqquipments etc.

This part is one of the most widely used parts.

USB stands for "Universal Serial Bus".

A means by which electronic products can be interconnected.

Used in mobile, audio - visual, automotive electronics, multimedia, electrical and other types.

It has been widely used in all kinds of external equipment.

Theoretically, USB1.1 can achieve a transfer speed of up to 12Mbps/ SEC, while USB2.0 can achieve a speed of 480Mbps/ SEC and be compatible with USB1.1 downward.

Type Standard USB 2.0 A Type Female, Right Angled, DIP type

Contact No.

4

Materials For housing can be PBT, LCP, PA6T, PA9T and so on

For shell can be SPCC, Copper and so on.

Both are depands on custoer request

Colour Black or White or Customized Color

Plating For Shell, Ni and Tin Plating

For Contact, Au, Ni, and Tin Plating

Plating Thickness For Shell, 50U', 100U' or Higher

For Contact, 1U', 3U'5U'15U', 30U' or Higher Machenical Contact current Rating: 1.5 Amperes for pin1&pin4 - Dielectric Withstanding Voltage: AC 500V(RMS) Insulation resistance: 1000Megohms Minimum.

Contact Resistance: 30m ohm Max for pin1&pin4

Electronical Mating Force: 35 Newtoms.

Maximum Unmating Force: 10 Newtoms.

Mlnimum

Application Mainboard, TV, Computer, Rejector, Game machine, smart home and Industrial etc.

Package Tray Package or Tape Reel Or Customized Package

Delivery Time Usually 25-35 days after receiving the 30% deposit

Payment terms TT, L/C, DP or Negotiable

Note For USB2.0 Series are very mature parts in this fields, we have many tooling for old products which are not shown all into the website, Please contact us to confirm what you need.

This part is only one sample for this series products, we can change the shell, the legs and even housing to make lots of similar parts.

We are so able to produce other standard as per the clients' requirements.

Just let us know.

We supply Good Quality USB c.
