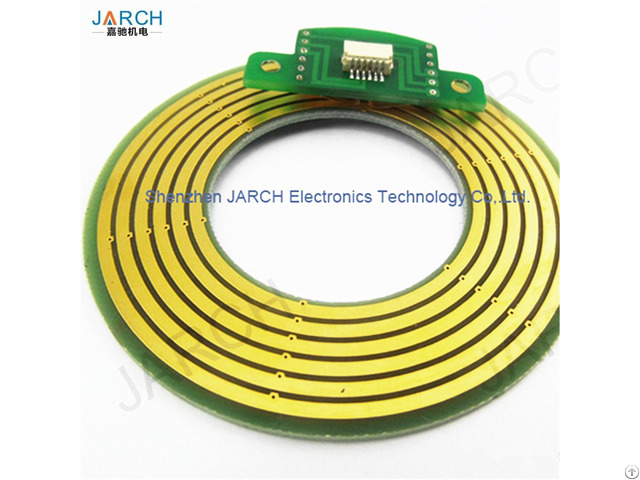

Through Hole Compact High Speed Pancake Slip Ring Connector For Cnc Equipment - China
price: 150.00 Dollar US$
Feature of Through Hole Compact High Speed Slip Ring Connector for CNC Equipment Disc Slip Ring: 1 - Gold alloy brush, Gold plated rings 2 - Thickness is only 5mm 3 - Max speed: 250rpm 4 - Hole size: 31mm 5 - low contact force per fiber and low contact wear rates Specifications of Through Hole Compact High Speed Slip Ring Connector for CNC Equipment Disc Slip Ring: Operating Speed 250 rpm
Number of Circuits 6
Voltage 240 VAC/DC
Current Rating 10A per circuit
Temperature Range -20°Cto +80°C
Contact Material Gold to Gold
Lead Size 22# silver plated copper
Lead Length Standard 250 mm(9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 5mΩMin
Company Contact:
- Phone: +8613929708571
- Address: Floor 2, Unit C, Guangfa Industrial Park, Dananhai, Luotian Community, Songgang Street, Baoan Dist., Shenzhen , China
- Email:
Published date: September 21, 2018
- Business Description: JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China.
Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
