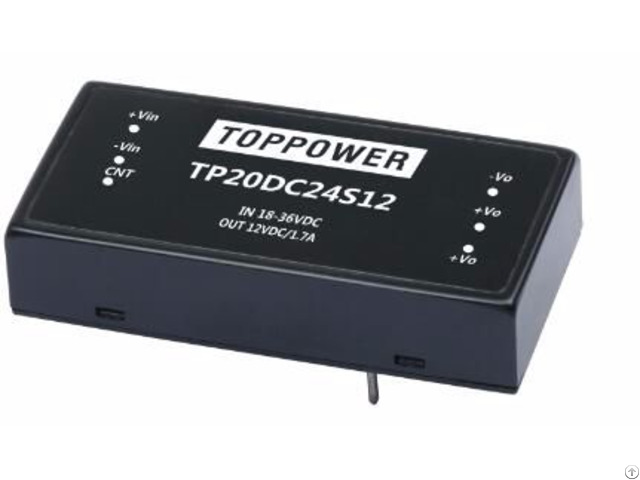

Tp20dc48s05w 20w Dc Converter - China

The rated output power of TP20DC/TP30DC converters is 20W, 30W, the outline dimensions is "50.8*25.4*11.2", 2: 1, 4: 1 input voltage range, the voltage range is 9.5V-18V, 18V-36V, 36V-72V, 9V-36V, 18V-75V.

The accuracy of the converter can reach ±1%, it can be widely used in telecommunications, railway transportation, Auto industrial, instrument and etc.

Part Number Input Output Voltage(VDC) Voltage(VDC) Rated Range values TP20DC12S03 12(2: 1) 9.5-18 3.3

TP20DC12S05 12(2: 1) 9.5-18 5.05

TP20DC24S03 24(2: 1) 18-36 3.3

TP20DC24S05 24(2: 1) 18-36 5.05

TP20DC24S12 24(2: 1) 18-36 12

TP20DC24S15 24(2: 1) 18-36 15

TP20DC48S03W 48(4: 1) 18-75 3.3

TP20DC48S05W 48(4: 1) 18-75 5.05

TP20DC48S12W 48(4: 1) 18-75 12

TP20DC48S24W 48(4: 1) 18-75 24

TP20DC48S15W 48(4: 1) 18-75 15

TP20DC24S12W 24(4: 1) 9-36 12

TP20DC48S18W 48(4: 1) 18-75 18

TP30DC24S05 24(2: 1) 18-36 5.05

TP30DC24S12 24(2: 1) 18-36 12

TP30DC48S03 48(2: 1) 36-75 3.3

TP30DC48S05 48(2: 1) 36-75 5.05

TP30DC48S12 48(2: 1) 36-75 12

TP30DC24S12W 24(4: 1) 9-36 12
