Yjlhs Aluminum Alloy Cable - China
price: contact company for price
Voltage
0.6KV35KV Construction

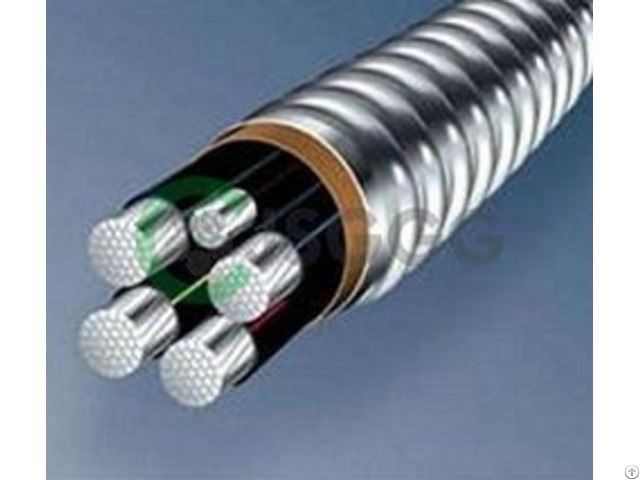

Sino-cables YJLHS type is constructed with AA-8000 series aluminum alloy, compact stranded conductor.
The conductor is extruded with XLPE(cross-linked polyethylene) insulation.
Twisted assembly wrapped with a binder and covered with 5000 series aluminum alloy interlocking armor.
Standard
GB/T 12706; GB/T 31840; IEC60502, or other standards required by customers.
Features
1 - the operating temperature: -40℃90℃, Conductor insulation is free of harmful heavy metals in compliance with RoHS.
2 - good bendability, high elongation and flexibility, low spring-back, excellent properties of creep resistance, anti-corrosion and anti-oxidant, stable connection.
3 - fire resistant as NH, fire retardant as ZR, low smoke halogen free as WDZ, or other requirements by customers.
4 - Bending radius is only 7 times of the outer diameter of the cable and lightweight, which makes installation easier without pipeline wiring and threading.
5 - Quick, easy one-step installation designed to save time, money, and energy, YJLHS type AA8000 aluminum alloy cable replaces copper power cable overwhelmingly.
Applications
YJLHS Type cable has been widely applied to the installation of both overhead and underground wires only in dry environments, approved for use in service, feeder and branch circuits.
Company Contact:
- Posted By: Jiangsu Sanqi Cable & Wire Co., Ltd,
- Phone: 0513-68971818
- Address: Rudong economic development area, Jiangsu, China , Rudong , Jiangsu , China
- Email:
Published date: April 27, 2017
- Business Description: Sino-Cable manufacture cables with AA 8000 series aluminum alloy cable, power cable, rubber cable, solar cable, xhhw-2, use-2, ser/seu, MC, MHF, UD Wire Cable.
