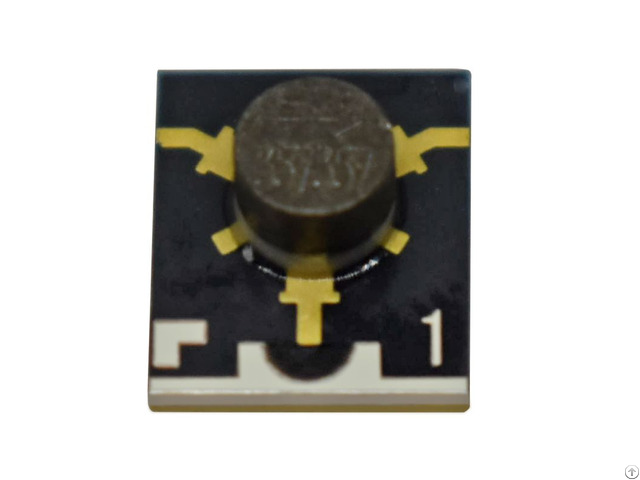

X Ku Band 8 0 To 14 0ghz Rf Microstrip Isolators - China
price: 75.00 Dollar US$
Model Number: UIYMI67A8T14
Frequency Range: 8.0~14.0GHz
Bandwidth: 45%
Insertion Loss: 0.9dB
Isolation: 12dB
VSWR: 1.5
Forward Power: 10W
Reverse Power: 3W
Connector Type: Microstrip
Temperature: -55~+85°C
Dimension: 6*7*3.5mm Military, space and commercial applications.
Electronic Musical Instrument Public Address System Radio Set Biomedical Instrumentation Optical Communication Technology Wireless Infrastructure Microwave Subsystems 2G 3G 4G 5G GSM CDMA LTE NR
Company Contact:
- Posted By: UIY Inc.
- Phone: +8675583748888
- Address: No. 8, lane 1, Xintun East Zone, Longgang District, 518172, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: March 2, 2023
- Business Description: Professional Radio Frequency (RF) / Microwave Device Supplier
Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.
UIY Inc.
was established in 2003 in Shenzhen, China, with the registered capital of 200 million yuan (about 32 million dollars).
It is an integrated enterprise, which includes research, production, marketing and service for the civilian and military microwave communications device.
The products are sold all over the world.
Product catalog:
Isolator / Circulator
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
