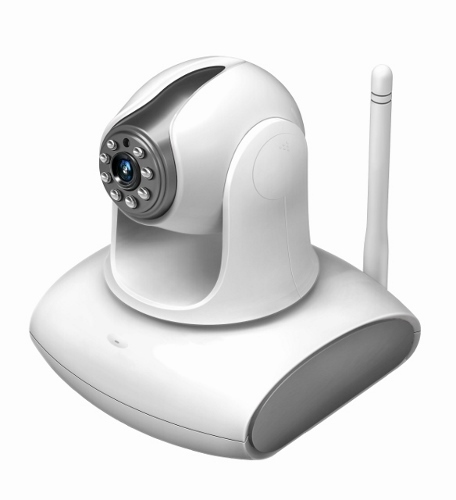

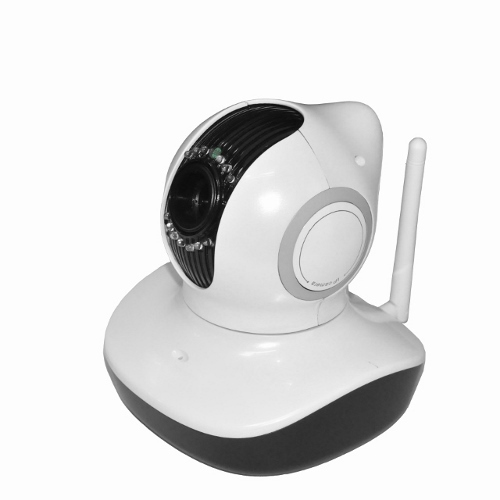

1megapixel Wireless P2p Tilt Pan Ip Camera With Sd Card Memory - China

Camera Structure

Model NO.

H13-DAF10

Image sensor 1/4" OV9712 CMOS

Operation system Embedded Linux OS

Minimum Illumination 0.8Lux/F1.4(color mode),

0.3Lux/F1.4(B&W mode)

Lens 4.2mm@F1.4/49.13

Leds 12pcs 850nmΦ5mm IR leds, 10m IR distance, dual

filter, IR-Cut

Video

Compression format H.

264 baseline profile@levels:

3.1/Motion-JPEG

Resolution 720P/VGA/QVGA

Bit Rate 128～4096kbps

Maximum frame rate 30fps/24fps(720p)

Image adjustment Contrast, Brightness, Saturation,

Hue

Audio

Input 1 Channel Line in(3.5mm phone jack)&1 Channel

Internal -48dB Microphone

Output 1 Channel Line out(3.5mm phone jack)&Internal

speaker(8Ω1W)

Sampling frequency 8KHz

Sampling Bit wide 16bit

Encode format/Bit rate ADPCM/32kbps

Network

Ethernet 10Base-T / 100Base-TX, RJ45 connector

Protocols TCP/IP, HTTP, SMTP, FTP, DHCP, DNS, DDNS,

NTP, UPnP, PPPoE, P2P etc

DDNS Free DDNS

User/Host Level: 3 levels: administrator, camera

control, live view only

Online visitor Support 4 visitors at the same time

Wireless Lan

Data Modulation DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

Operating Frequency 2.4GHz to 2.4835GHz

Channels 14

Data rates 802.11n: Up to 150Mbps(dynamic)

802.11g: Up to 54Mbps(dynamic)

802.11b: Up to 11Mbps(dynamic)

Transmitter Output Power

15±1dBm@54Mbps/32±7m W@54Mbps

Antennas 2dBi Gain dipole antenna with reverse SMA

plug

Wireless LAN security 64/128-bit WEP/WPA-PSK/WPA2-PSKdata

encryption

Pan & Tilt

Rotation angle Pan Range: 350°, Tilt Range: 120°

Number of Preset 15

Alarm

Alarm Input 1CH input/Motion detection

Alarm Output 1CH output/send pictures by email/upload

pictures to FTP server

Others

Operating condition Temperature: -10～50C, humidity: 10

～90%, non-condensing

Storage condition Temperature: -30～70C, humidity: 5

Power supply 12VDC ± 10%

Power consumption Typical: 3.5W(IR LED turn on)/Max:

7W(P&T turn on)

Packing weight(G) 1200

Certificate CE, FCC, ROHS
