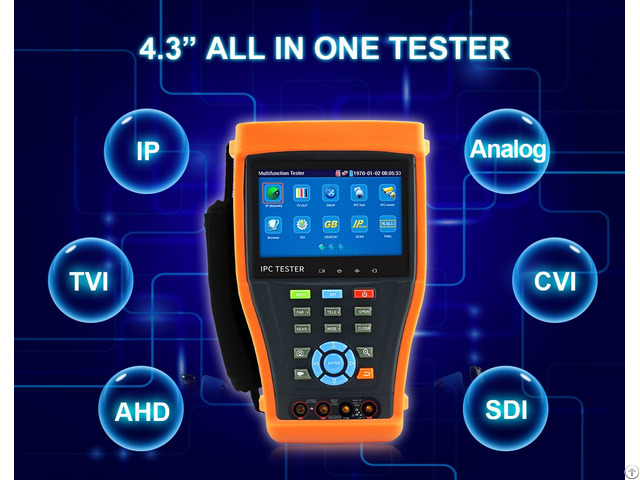

All In One Ip Cctv Tester With 4 3 Inch Touch Screen - China

1 - 4.3 inch touch screen, 800*480 resolution

2 - Capacitive touch screen , OSD menu,

3 - Touch screen and key operation

4 - Built-in WIFI, wireless network camera test

5 - Support AHD/CVI/TVI camera test, snapshot , video record and playback , zoom

6 - SDI camera test （*Optional）

SDI digital video monitoring testing, SDI input, support resolution

1280x720P 25Hz/1280x720P 30Hz/1280x720P 50Hz/1280x720P 60Hz/ 1920x1080P 25Hz/

1920x1080P 60Hz/1920x1080I 50Hz/1920x1080I 60Hz

7 - IP discovery, do not need to know the first two digits of camera’s IP address , it can auto-scan the whole network segment IP, and auto-modify tester’s IP address NEW

8 - Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera NEW

9 - Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera.

NEW

10 - DH test tool app is design for Dahua Camera image test, support modify IP, user name and password etc parameters.

NEW

11 - Support 1080P camera/ ONVIF

12 - Support more than 40 IP camera protocols, such as DAHUA, Haikang, KEDA, Samsung, HIKVISION and TIANDY camera

13 - Support mobile client app of the IP camera

14 - Display real resolution of the IP camera images

15 - Video screen snapshot , video recording , files named and save, easy to find

16 - Support network PTZ controller (ONVIF)

17 - Support 1080P HD video files and MKV/MP4 media files play

18 - PTZ controller , Photograph, Video record, Record playback

19 - Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement

20 - Color bar generator, analog video color bar and testing image output

21 - POE voltage measurement, PING test , IP address scan, port flicker etc

22 - TDR cable test, test cable length and short-circuit, Digital Multi-meter, Optical Power Meter, Visual fault locator

23 - PoE DC48V power output, Max power 24W

24.12V /2A power output

25.5V 2A power output, as the power bank

26 - HDMI output, 1920*1080P Resolution

27 - Audio in /out

28 - LED lamp, calculators, music players and other application tools

29 - Support customers self update software

30 - Lithium Ion Polymer Battery, working time lasts 16 hours
