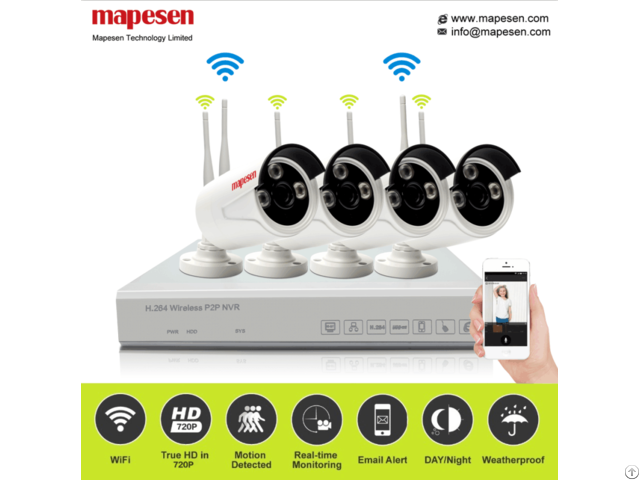

Mapesen 4ch Wireless Hd 960p 1 3mp Wifi Nvr Kit - China

Model W904C1A2-A

industrial processor

Embedded Linux operating system

AV(audio/video)input Network video input 4ch

Network video access bandwidth 72Mbps

AV(audio/video)output HDMI output 1ch, resolution：1024x768, 1366x768, 1440x900, 1920x1080p, Audio output support

VGA output 1ch, resolution：1024x768, 1366x768, 1440x900, 1920x1080p

AV CODEC Specification vedio resolution D1/960H/720P/960P

synch-playback 4ch

Video Control Video/Capture mode Maual, Time, Motion, Alarm

Playback mode Realtime, Routine, Event

Backup mode Maual, Time, Motion, Alarm

HDD Type 1*SATA interface

Max Capacity 4 TB at most for each

External Interface Network interface 1, 10M/100M RJ45 adaptive Ethernet port 2, WIFI 5DB antenna USB interface 1 USB 2.0 Audio interface A 3.5mm headphone port (optional)

Network Control Network protocol UPnP((play&plug), SMTP(email service), PPPoE(dial-up),

DHCP(Auto matically pbtain an IP address), etc.

Others Power Supply DC 12V 2A Power consumption (excluding hard disk) ≤5W Working temperature -10℃--＋55℃ Working humidity 10％--90％ Size 257mm(L)×210mm(W)×45mm( H) Weight (excluding HDD) ≤1Kg

Wireless IPC

Model A2

Processor Professional industrial processor

Operating system Embedded Linux operating system

Image sensor 1/3” Progressive Scan Sensor

S/N Ratio > 39.1 dB

Resolution 1280 x 960 4: 3

Minimum illumination Color: 0.1 Lux

B/W: 0.01 Lux

Lens 3.6mm

OSD Date Time & Title

White balance Auto

Day & Night Auto / Color / BW

3D-DNR Auto

Mirror/Flip On / Off

Privacy Masking 4 Zone Selectable

Stream parameter two Streaming at the Same Time:

H.

264 1280x960@15fps or below

H.

264 640x360@15fps or below

Anti-thunder level Standard IEC61000-4-5

Power input DC12V-1A

Power supply ≤6W

Interface RJ45 / WIFI 802.11b/g/n

Audio frequency Audio tail line output (optional)

Working temperature / humidity -10℃ to +50℃ / 30% to 80% RH

Storage temperature / humidity -20℃ to +60℃ / 20% to 90% RH

Dimension 205(L)×70(W)×55 (H)mm

Weight 500g
