Mapesen 8ch 1080p 2 0mp Outdoor And Indoor Camera With Xvr Diy Kit - China

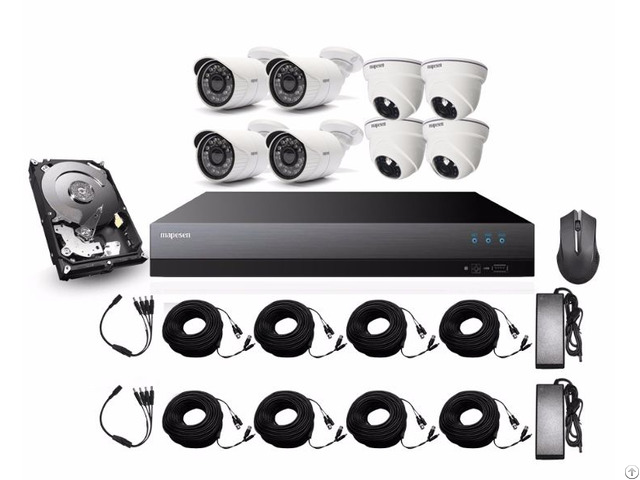

Description

NVR 1x XVR-TLM5108

Camera 4 x Q1EH200 & 4 x L2MH200

Cable 8x 18m BNC+DC Cable, 2x (1 to 4CH power cable splitter)

Mouse 1xUSB 2.0 Mouse

Hard Disk 1x1TB Seagate hard disk ST1000VX002

Adaptor 2xDC12V/2A(For Camera)&1xDC12V/3A(Fo r DVR)

Weight 11.55kg/SET

Camera Model Q1EH200&L2MH200

Image Sensor 0806

DSP FH8536E

Image Resolution 1080P

Effective Pixels 1920*1080

TV System PAL/NTSC

Electronic Shutter AUTO/ 1/50(1/60)-1/100, 000sec

S/N Ratio ≥50dB

Scanning System Progressive Scan

Lens

Focus Length 3.6mm

Focus Control Fixed

Lens Type Fixed

Pixels 3M Pixels

Auto Iris Support NO

Night Vision

Infrared LED 14µ x 12PCS/24PCS

Infrared Distance 20M/25M

IR Status Under 10 Lux by CDS

IR Power On CDS Auto Control

Camera Features Day/Night YES

OSD Menu Language YES

White Balance AUTO / MANUAL

Gain Control AUTO

Noise Reduction DNR

Picture Adjustment YES

WDR YES

OSD Support YES

UTC YES

General

Housing Metal

Bracket NO

Dual Voltage NO

IR Cut Filter YES

Heater NO

Operation Temperature -10℃ ~ +50℃ RH95% Max

Storage Temperature -20℃ ~ +60℃ RH95% Max

Power Source DC12V±10%, 500mA

Dimension 90.5(W) x 80(H) x 80(D)mm

Weight 300g Model XVR-TLM5108

System

Main Processor HI3520DV300

Operating System Embedded LINUX

Video

Input Anolog: 8*1080N

Anolog+Network: 6*Anolog(1080N)+2*network (Max 2MP), 4*Anolog(1080N)+4*network (Max 2MP), 2*Anolog(1080N)+6*network (Max 2MP)

Network: 16*network(Max 2MP)(Total incoming bandwidth ≤50M)

Input 8CH BNC

Signal Type Anolog/AHD/CVI/TVI 2.0/Network

Output 1HDMI, 1 VGA, 1CVBS

Audio

Input 4Channel, RCA

Two-way Audio NO

Output 1 Channel, RCA

Alarm

Sensor Input NO

Output NO

Motion Detection 8 Channel(max 16 Channel in pure network mode)

Trigger Events Recording, Email, Screen tips, Buzzer

Email Alarm Send Image to The Designated E-mail

PTZ

Interface RS485

Protocol Pelco-D, Pelco-P

Baud Rate 110~921600

Address 0~255

Display

VGA Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080

HDMI Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080

Display Split 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel

Privacy Masking 1 Rectangular Zones (Each camera)

OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

Video Compression H.

264

Audio Compression G711A

Resolution Half 1080P(960×1080);720P(128 0×720);960H(P: 960×576/N : 960×480)

Video Quality worst/worse/ordinary/well /best

Record Rate Half 1080P(960x1080 8*15fps), 720P(1280×720 8*15fps), 960H(P: 960×576 8*25fps/N: 960×480 8*30fps)

Record Mode Manual\Timer\Motion Detection\alarm

Playback & Backup

Sync Playback Pure Mixture Mode: 4CH 1080N@15fps

Pure Network: 4CH 1080P@30fps, 1CH 5MPAnolog: 4CH 1080N@15fps

Remote Playback 4 Channel / 1Channel

Search Mode ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions Play, Pause, Stop, Fast play, Rewind

Smart Phone Playback 1 Channel

Backup Mode USB Device/Network Network

Interface 1 RJ45 10M/100M Adaptive Ethernet Interface Network Functions HTTP, IPv4, IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP

DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES

Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)

CMS Software Support Windows 7/Windows 8/Windows 10

Extra Stream D1/CIF(1~25fps)

Smart Phone iPhone, ipad, Android, Android pad

Hard Disk Driver

Interface Type 1 SATA Interface Capacity 2.5"/3.5" SATA, Up to 6TB

General

Language Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa

German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek

UTC Control YES

USB Interface 2 USB 2.0 Interfaces Power consumption DC 12V ≤10W (Without Hard Disk)

Working Environment -10~55℃/10~90%

Dimension (W×D×H) 260*215*43(mm) Weight 2.0kg (Without HDD)
