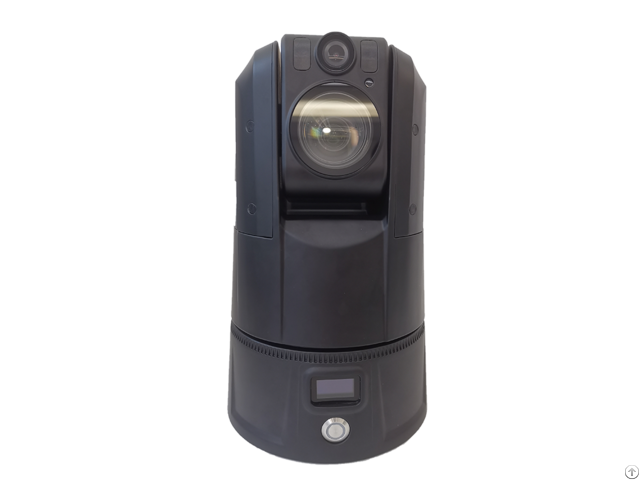

Mobile Dome Camera Ptz Tilt Control Surveillance Cam For Site Operation - China

Type item Technical parameters

Bracket mobile video surveillance device X5 Positioning technology Beidou+GPS+GLONASS+Galile o

Miniaturized omnidirectional spiral antenna

Time to first fix (typical) 30s

AGNSS positioning time 5s

Data update rate 1-10Hz

Single point positioning 3 meters

SBAS positioning 1 meter

Differential positioning 2cm+1ppm

System configuration Operation system Android8.1

Processor 8-core 2.0 GHz high-speed processor

Memory space 3GB/6GB

Data storage 32/64GB

Camera 13 million pixels, autofocus

Sensor Gravity sensor, gyroscope, compass, barometer

Data communication Telecom Mode 4G

WiFi 802.11 a/b/g/n/ac (wave2)

Bluetooth BlueTooth 4.1, V2 - X compatible, BLE support

USB USB2.0, Type-C interface, with OTG function

Power characteristics Battery capacity 3.85V, 4000mAh

Charging mode USB fast charging for 2.5 hours, seat charging for 4 hours

Working Time (High precision positioning) 10 hours

Industry expansion Encryption chips Support

Lighting Support

Physical characteristics Size (L*W*H) Battery end: 83*60*26mm

Host: 100*80*40mm

Weight 200g

Three-proof level IP65, resistant to 1.8 meters free fall

Operating temperature -30°C~+70°C

Storage temperature -40°C~+80°C Functional features 1, Global and detailed monitoring of the target area

2 - Support one-key focus on 3D ball control 3 - Binocular collaboration can monitor to personnel and vehicle tracking

4 - Support face, safety helmet, mask, tooling, engineering vehicle identification and capture

5 - Support Beidou, GPS, mixed positioning, it can accurately locate the specific location of the work site

6 - With telescopic tripod, it can be directly attached to the vehicle, and the equipment can be easily removed when the task is over;

7 - The bottom is equipped with strong suction magnet, which is convenient to install.
