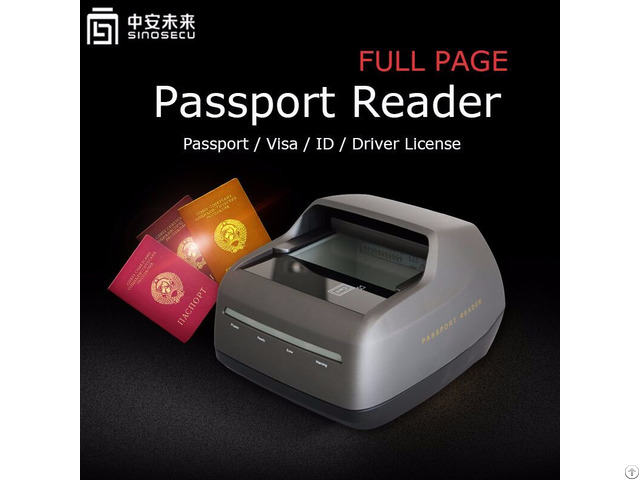

Border Control And Immigraiton Reader - China

Window size 127*96 mm

Sensor: CMOS 3.0 Megapixel(2048*1536)

Resolution 400 dpi

Multiple wavelength illuminations includes: Visible, Infrared (850 nm), UV (365 nm)

Supporting OCR processing of travel documents

Supporting the image capturing and information recognition in travel documents like passport, visa according to ICAO 9303, including MRZ and other information Supporting the recognition of 1D/2D barcodes The recognition rate is less than 1 second Supporting RFID reading for e-passport

Supporting ISO 14443 Type A/B

Supporting e-Passports Basic Access Control (BAC)

Supporting Active/Passive authentications of e-Passport

Communication interface is USB 2.0

Supporting USB extended interfaces which can be connected to other USB devices Supporting the documents to be recognized and read automatically

automatic detection of document types by the system

4 status indicator LEDs (for Power, Ready, Error, and Warning)

User can define the status of those buttons

Providing the full SDK;

Providing samples in the programming language of VC, VB, C#, Java

The specification for external standard power adaptor: Input AC 100~240V 50-60Hz 0.8A

Output DC 12V 2A

Humidity ：20％ to 95％(no condensing in relative humidity)

Temperature：operatin g in-10ºto 50ºC；-20 to 50ºC for storage dimension：248*216*152mm

the net weight：1.5kg gross weight：2.7kg

Supporting Kiosk solution (Cover removed)

Size: 213*184*124mm

Online technical support via telephone, email, Internet at any time the clients need One-year warranty for hardware and lifelong maintenance

Company Contact:

• Posted By: Sinosecu Technology Corporation

• Phone: +861082525969

• Address: Room1609, Yingu Building, No.9 Beisihuanxilu,Haidian Distric, www.sinosecu.com.cn/, Beijing , China , China

• Email:

• Website: https://www.sinosecu.com.cn

• Business Description: Sinosecu Passport Reader is a multi-purpose document scanner based on high-precision OCR algorithm.

  It consists of a unique hardware device and advanced OCR SDK/API.

  It can automatically capture data from ICAO compliant and Non-ICAO travel documents, including passport, e-passport, visa, ID card and driver license.

  It provides an ideal solution for fast identity verification.
