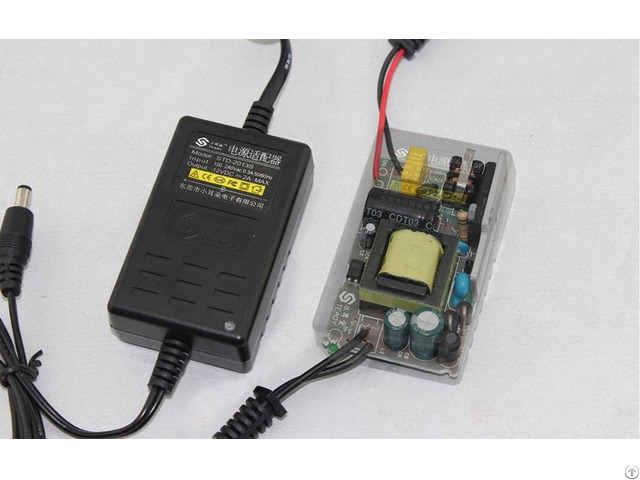

12vdc 2a Desktop Type Power Adapter - China

Desktop Type Power Adapter small size switch with 12V DC, 2A, 24W, Full current, all using brand new capacitors

Plastic housing use ultrasonic process, it is No need any screw.

Features: Glass fiber board (FR-4) Special shield housing design for cooling.

Protections: short circuit, over current, overload.

Customized AC plug, EU, UK, USA, AU Plug is available Wide input range: 100-240V, 50/60Hz.

4 times aging test 100% Enough Power, High efficiency 85%.

3 years warranty Technical parameter Specification MODEL

STD-412K-A+ STD-2013S

Output Power 12W 24W

Output Voltage 12VDC 12VDC

Output Voltage Toleance ±1% ±1%

Output Current 1A 2A

Output Current Range 0-1A 0-2A

Ripple and Noise 120mVp-p 120mVp-p

Into line Stability ±0.5% ±0.5%

Load Stability ±1% ±1%

Efficiency 85% 85%

Input Voltage Range 100-240VAC 100-240VAC

Input Current 0.06~0.13A 0.12~0.26A

Surging Current Cold 18A/110V 36A/240V

Leakage Current <1mA/240VAC

Overload Protection 105%~200%

T.C. ±0.03%℃(0~50℃)

Start, Rise, Hold Time 200ms 100ms 20ms

Mechanical Shock 10~500Hz, 2G 10min.

/1Period, Time 60min

Insulation Strength I&O: 3KVAC I&C: 3KVAC I&C: 0.5KVAC

Isolation Resistance I&O, I&C, O&C: 500VDC/100MΩ

Working Temperature -10℃~45℃, 20%~90%RH

Isolation Resistance -20℃~85℃, 10%~95%RH

Size 79*47.5*26mm 79*47.5*26mm

Safety Standard UL1012 REQUIREMENT (NOT APPLY FOR THE MARK)

EMC Standard FCC PART15JCONDUCTION CLASSA

Company Contact:

• Posted By: Guangdong Steady technology Co.,Ltd.

• Phone: +86 13694997789

• Address: No.1 kanglin road,shan bei village, lilin town,zhongkai hi-tech industrial Zone, Huizhou , Guangdong , China

• Email:

• Website: http://www.steadysmps.com

• Business Description: Guangdong Steady technology Co., Ltd. is a professional manufacturer specializing in security centralized power supply designing, developing, production and selling since 1999 - Located in Guangdong, China with our own D&R team, sales centre and factory site.

  We supply security centralized power supply with highest cost effective and services such as full product range for selection, technical support, OEM & ODM.

  Our products are widely applied in security systems like CCTV, DVR, Alarm, Access Control, Building Intercom, Electronics products etc.

  The main products series are Multiple-Way Boxed Power Supply, Power Box with battery charger, Switching Power Supply, POE Power Supply, Rackmount Power Supply, Power Adapter etc.

  We look forward to cooperate with importer, distributor and manufacturers that in security business.
