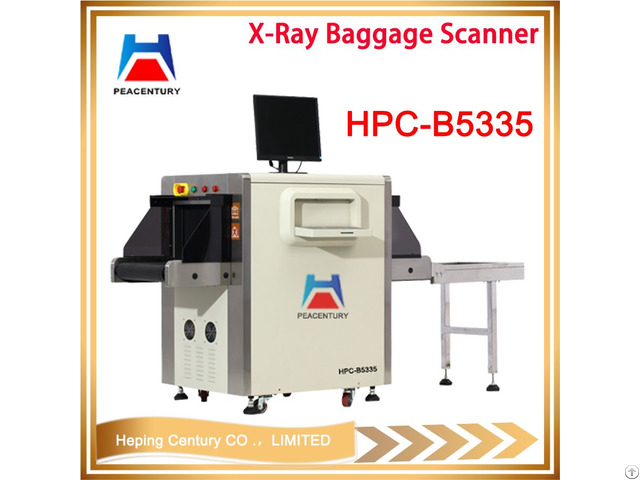

High Resolution 32mm Penetration 5335 Dual Energy X Ray Baggage Scanner - China

TUNNEL SIZE: 530(w)*350(H)mm CONVEYOR SPEED: 0.22m/s

TYPE: Mutil Energy CONVEYOR: 200 Kg

STEEL PENETRATION: 38mm WIRE RESOLUTION: 40AWG

WARRANTY: 2 Years PRODUCT NAME: X-ray Baggage Scanner

High Resolution 32mm Penetration 5335 Dual Energy X-ray Baggage Scanner Model: HPC-BF5335 General Specifications Tunnel Size : 530 (W) ×350 (H) mm Conveyor Speed: 0.22m/s Conveyor Max Load: 100 kg Single inspection dosage: < 1.32μGy Wire Resolution: 40AWG Steel Penetration: 32mm Film Safety: For ISO 1600 X-RAY GENERATOR Orientation: Upward Tube Current: 0.4~0.7mA(adjusta ble) Anode Voltage: 80KV(adjustable) Angle: 60° Generator cooling/working periods: Sealed oil bath with forced air/100% OPERATING ENVIRONMENT Storage Temperature: -20oC to 60oC Operating Temperature: 0oC to 45oC Relative Humidity: 20 to 95% non-condensing System Power: 220 VAC (±10%) 50±3HZ Power wastage: 1.0 KW (Max) Noise<65DB X-RAY Sensor: L-shaped array detector 24bit Dual energy Image Performance System: Display: High-resolution 19 inch color LCD display Color quality: 24-Bit real colors based on materials Edge enhancement: Object contour edge is more distinct Super image enhancement: Image detail is more distinct High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function Brightening/dimming: Increase/Decrease brightness of image Image recurrence: Display the previous twenty images and process any one of them Image restoration: Restore image to initial status Image storage: Real-time store any image and process it in operation status Special features: Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time Safety ray: Ray is transmitted under automatic control, avoiding the error One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient Eagle eye: Capable of expediently observing the magnifying area Self-diagnosis function: Give message automatically if malfunction for prompt maintenance SHENZHEN HEPING CENTURY TECHNOLOGY CO., LTD (PEACENTURY)is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine technology, metal detection technology, explosive detection, liquid detection and relative security services.

We owns all of the intellectual property rights (IPR) to its core technologies, and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist, excellent technical support and maintance engineers.

We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

Business Type：Manufacturer& International Trading Company

Location：Shenzhen, China (Mainland)

Main Products：Walk Through Metal Detector, X-Ray Baggage Scanner, Hand Held Metal Detector, Under Vehicle Inspection System, Hydraulic Rising Bollard, Hydraulic Road Blocker, Tire Killer, Gold Detector, Barrier Gate etc.
