Long Range Monitoring Ir Thermal Imaging Camera Continuous Zoom 80 800mm - China

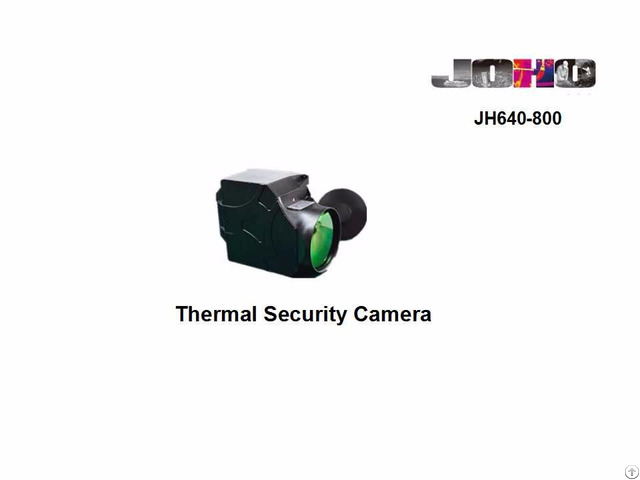

JH640-80080 is equipped with high resolution 640x512 MWIR cooled sensor and continuous zoom 80~800mm focal length lens.

It continuously zooms between 0.55deg narrow field of view and a 5.5 deg wide field of view.

It offers excellent situational awareness but also the possibility to zoom-in, and see more detail, once a target has been detected.

It is extremely compact, easy to integrate into air-borne, ship-borne and vehicle-borne EO/IR imaging and tracking camera system.

Features

800mm lens ensure extremely long-range detection Continuous zoom optics satisfies multi-mission Compact design easy to integrated into EO/IR camera system Hermetically sealed housing for independant observation purpose.

Easy operation Technical Specifications Detector Parameters

Detector type Cooled FPA HgCdTe Pixels 640×512, 15μm×15μm

Spectral Range 3.7μm~4.8μm

NETD ≤25mK

Cooling ≤8min at 20ºC

Optics Parameters Focus Length 80~800mm continuous zoom F#: 4

FOV 6.87°×5.50°~0.69°×0 - 55°

Image Presentation Video output PAL/NTSC

Frame frequency 25Hz/30Hz

Brightness & Contrast Auto/Manual

Polarity BH&WH

Interfaces Command and control RS422 or RS232 Power Parameters Power supply 24~30VDC

Power consumption ≤25w

Environmental Parameters Operating temperature -40ºC~+60ºC

Storage temperature -50ºC~+70ºC

Vibration proof GJB150.16-86 Shock proof GJB 150.18-96 High temperature test GJB150.3-86

Low temperature test GJB150.4-86

Physical Parameters Weight ≤20kg

Size 460mm(L)*230mm(lens diameter)*325mm(width)


Color oxide black

Range Performance

Detection range 20km (2.3m*2.3m vehicle)
