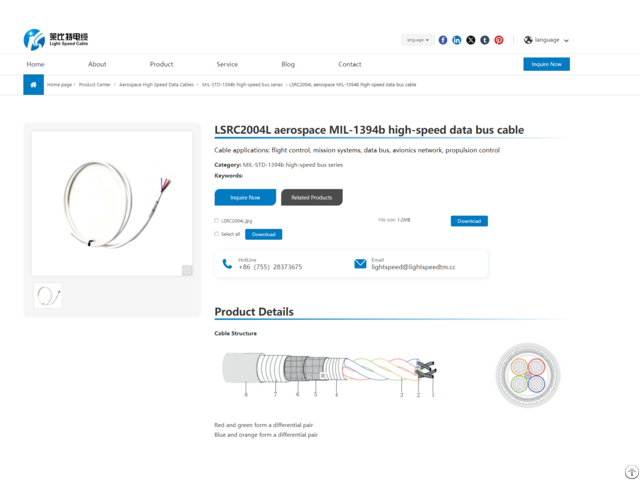

Lsrc2004l Aerospace Mil 1394b High Speed Data Bus Cable - China

Cable application : Flight control, missin systems, data bus, avionics network, propulsion control

Category: MIL-STD-1394B hig speed bus series., Electrical & Physical Properties Impedance (Ohm) 110±6

Attenuation 100MHz 2.23(db/10m)

Attenuation 250MHz 3.57(db/10m)

Attenuation 500MHz5.20(db/10m)

Attenuation 1000MHz7.38(db/10m)

Delay Difference 11.5(ps/m)

Delay 4.20(ns/m)

Capacitance ≤45(pf/m)

Dielectric withstand -Conductor to Conductor 1.5(KV/DC)

Dielectric withstand -Conductor to Shield 1.0(KV/DC)

Minimum Bending Radius 45 mm

Insulation Resistance 1500(MΩ.

Km)

Operating Temperature Range -55~165(℃)

Weight 47 (g/m)
