Maant Rc 3 4 Hawkeye Infrared Thermal Imager Pcb Diagnosis - China

Description:

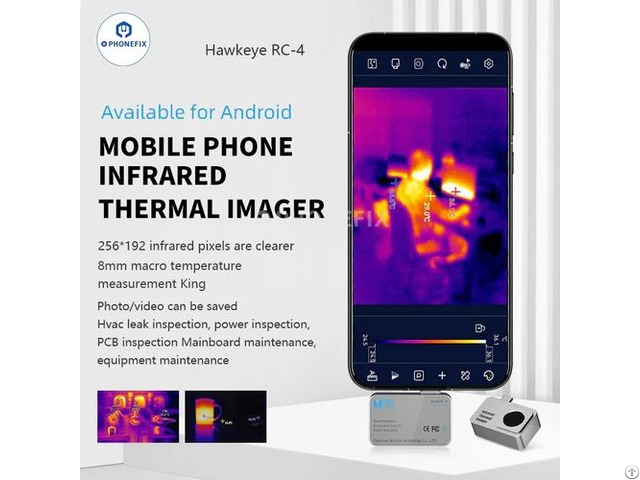

MaAnt Hawkeye RC-4 mobile phone infrared thermal imaging camera used with Android Phones type-c port for fast diagnose motherboard failures.

MaAnt RC-3 3D infrared thermal imager motherboard short circuit analyzer PCB fault rapid diagnosis instrument, can be connected to mobile phone and computer.

MaAnt RC-3 RC-4 256*192 infrared pixels thermal camera motherboard fault quick diagnosis for mobile phone PCB BGA SMD chips repair, like leak/power inspection and short-circuit detections MaAnt RC-3 Specification:

Model: MaAnt RC-3 Infrared thermal imaging analyzer.

Resolution: 256*192.

Frame rate: 25Hz.

Lens Angle: 56°x42.

Temperature measurement distance: 3mm-15mm.

Device port: USB Type-C.

Input voltage: DC 5V.

Temperature range: -15℃-600℃ (5℉-1112℉).

Storage temperature: -20℃-60℃.

Operating temperature: 0℃-50℃.

Product size: 150*150*230mm

Net weight: 591g.

Please note: HD 30mm Macro lens needs to be purchased separately.

MaAnt RC-4 Specification:

Model: MaAnt Hawkeye RC-4 thermal imaging camera.

Resolution: 256*192.

Operating wavelength: 8~14 μm.

NETD: <50mk@25°C.

FOV: 56° x 42°.

Lens: 3.2mm.

Temperature range: -15°C~600°C.

Temperature measurement accuracy: ±2°C or ±2%.

Temperature measurement: Maximum, minimum, center point and zone support temperature measurement.

Palette pattern: lron red, black heat, white heat, rainbow, blue heat, red heat.

Language: Chinese, English, Russian, German, Italian, Portuguese, Japanese, French, Spanish, Finnish, Polish, Korean.

Operating temperature: -10°C~75°C.

Storage temperature: -45°C~85°C.

Waterproof type: IP54.

Product size: 40mmx25mmx14mm.

Package size: 111mmx79mmx53mm.

Product weight: 23g.

Gross product weight: 162g.

MaAnt Hawkeye RC-4 Features:

1 - Hawk Eye RC-4 mobile phone infrared is available for Android, 256*192 infrared pixels are clearer.

2 - The ideal thermal imager for engineers, 8mm macro temperature, measurement king, can see 0.25mm electronics.

3 - 25Hz high frame rate, the picture is smooth and low latency, and the temperature is quickly refreshed.

4 - High resolution 265*192, high resolution, rich in detail, clearly visible.

5 - Vanadium oxide detector, high resolution preserves more detail.

6 - Clear observation without fatigue 56° large viewing angle, easy to observe large area, can quickly scan the target, locate the heat source, improve work efficiency.

7 - Bid farewell to tradition, single temperature measurement mode photo/video can be saved, which is more advanced and convenient.

8 - Heat and cold tracking, automatic temperature tracking function, hot and cold temperature at a glance.

9 - Plug and play, no charge, not controlled by the power supply, the phone can be used with electricity.

10 - Temperature range, minimum temperature -15℃, maximum temperature 600℃.

11 - 6 color palettes multi-color imaging effect, six color palettes, free to choose different modes for different scenes.

12 - The technology is tiny and small, small and portable, full of technology, and accurate temperature measurement.

13 - The multi-application range can be used in circuit maintenance, pipeline inspection, automotive troubleshooting, anti-snooping, and other areas.

14 - APP interface analysis, the interface is clear and easy to understand, and the automatic tracking function is clear at a glance.

15 - Accurate temperature measurement with environmental correction.
