    • Numicro Icp Programmer Nu Link Emulator Downloader - China

    price: 7.99 Dollar US$

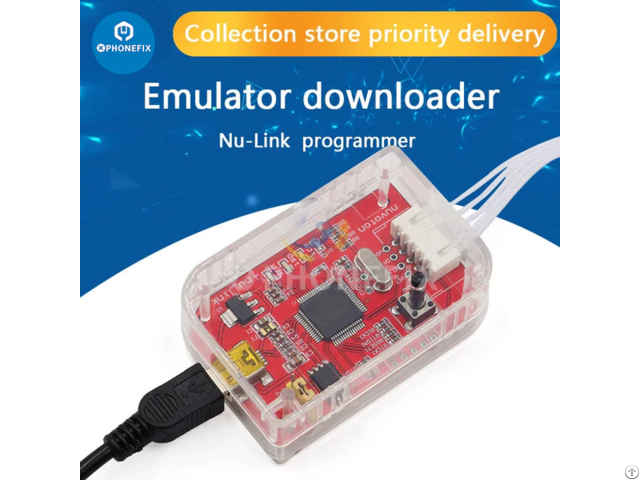

    Numicro Icp Programmer Nu Link Emulator Downloader

    Products Photos Catalog Numicro Icp Programmer Photos Catalog

    NuMicro ICP Programmer Nu-Link Nu Link Nuvoton ICP emulator downloader supports online/offline programming of M0/M4 series chips.

    Features:

    Firmware encryption and automatic writing are available.

    Online simulation, download, offline download.

    The firmware is constantly updated automatically.

    Firmware, fully compatible with the emulator.

    Supports IDE tools such as KEIL, IAR, and CoIDE.

    Preparation for the ICP programming tool:

    1 - System requirements

    Hardware and software requirements for installing the ICP programming tool system.

    as follows:

    PC/AT compatible with Pentium or higher CPU.

    XVGA (1024*768) color display.

    At least 512M RAM for best performance.

    At least 20M of available disk space.

    Windows 2000/XP/Vista/7 - 1.2 Hardware installation

    Step 1: Plug the USB cable into the USB port of the ICP programming tool board.

    Step 2: Connect the ICP programming tool board to the ICE interface of the DEV board.

    1.3 Software installation

    Please run the installation package to install the software.

    ICP programming tool and Nu-Link Dongle operating modes:

    2.1 ICP programming tool mode

    The ICP tool supports "online" and "offline" programming modes.

    2.1.1 Online programming mode

    If the "Offline Programming Mode" option in Figure 4-14 is not selected, the ICP

    The programming tool will be programmed in online programming mode.

    Click the Start button in Figure 2-2 to start programming the target device immediately.

    The target device must be connected to Nu-Link.

    2.1.2 Offline programming mode

    If the "Offline Programming Mode" option in Figure 4-14 is checked, the ICP.

    The programming tool will perform programming in offline programming mode.

    Regardless of whether the target device is connected to Nu-Link or not, clicking the Start button will first save the file data to Nu-Link.


    Company Contact:


    • Phone: 13714194329

    • Address: JuGuang E-commerce Industrial Park, Building 8, No.9 Qilin Road, BanTian Street, LongGang District,, Shenzhen City,, Guangdong Province, China

    • Email: Email

    Published date: December 2, 2023

    • Business Description: China PHONEFIX Shop Team , Welcome to ecutoolfix.

      com! The one-stop mobile phone repair parts and tools wholesaler online store.

      Including Auto ECU chip and IC test adapters.
