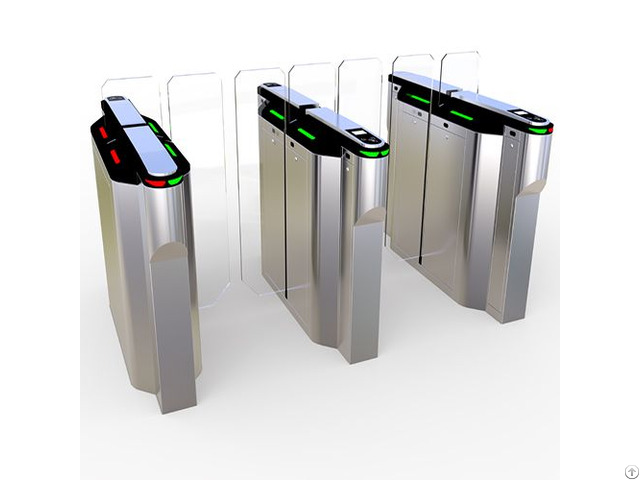

Sliding Turnstile Gate Jdpyz 10 - China

Unique design sliding turnstile gate, sliding turnstile barrier gate, optical sliding turnstile is an effecient contactless crowd control solution for upscale applications Sliding turnstile gate JDPYZ-10 operates in a fast, accurate, stable and quiet way with low-power consumption, and a longer service life, which comes with a high transparent glass baffles (Max 1.8 meters), effectively preventing people from crawling or climing over, and designed with stylish apperance blending into the aesthetics of the sorrounding interior.

Becausee of the unique design and rapid throughput, sliding gate turnstile JDPYZ-10 is an effecient contactless crowd control solution for upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere autonomous entry and aesthetics are important.

Sliding turnstile gate JDPYZ-10 monitors the pedestrians passing through the automatic turnstile lanes by photocells, which detect the direction and prevent closure as long as a pedestian or object Is within the secured area.

In addition, optical sliding turnstile gate JDPYZ-10 will be closed automatically after the passage is cleared, and the tailgating attempts or entry without authorization will be dectected and trigger an alarm singnal, and it will open to provide free passage in the event of power failure or in an emergency Keywords: slide optical turnstile, sliding barrier security turnstile, sliding gate turnstile manufacturer, sliding turnstile barrier gate, optical sliding turnstile cost Sliding Turnstile Gate Features

1 - Intuitive approach detection

2 - Precision controlled tempered glass obstacles

3 - Designed in compliance with the most stringent safety and security standards

4 - In case of emergency the obstacles can be unlocked with a simple push to automatically open

5 - Electro-mechanical locking to withstand forced entry attempts

6 - Glass obstacles up to 1800mm without or with straight or sloping overhang

7 - Silent and smooth in operation

8 - Unique detection algorithm prevents fraudulent entry with greater user safety

9 - Unique detection system accurately tracks the passage of a single authorised user

10 - Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs Sliding Turnstile Gate Applications

Offices

Banks

Public institutions

Data centres

Sensitive sites

Schools and universities Sliding Turnstile Gate Parameters

Housing Material: #304 stainless sheet

Dimensio: 1400 x 350 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Lane Width: 500mm~550mm

Drive Motor: DC 24V brushless motor

Pass Speed: 35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication Interface: RS485

Rest Time after Power On: 3 seconds

Open Time: 1 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

orking Environments: Indoor, outdoor (with shelter)
